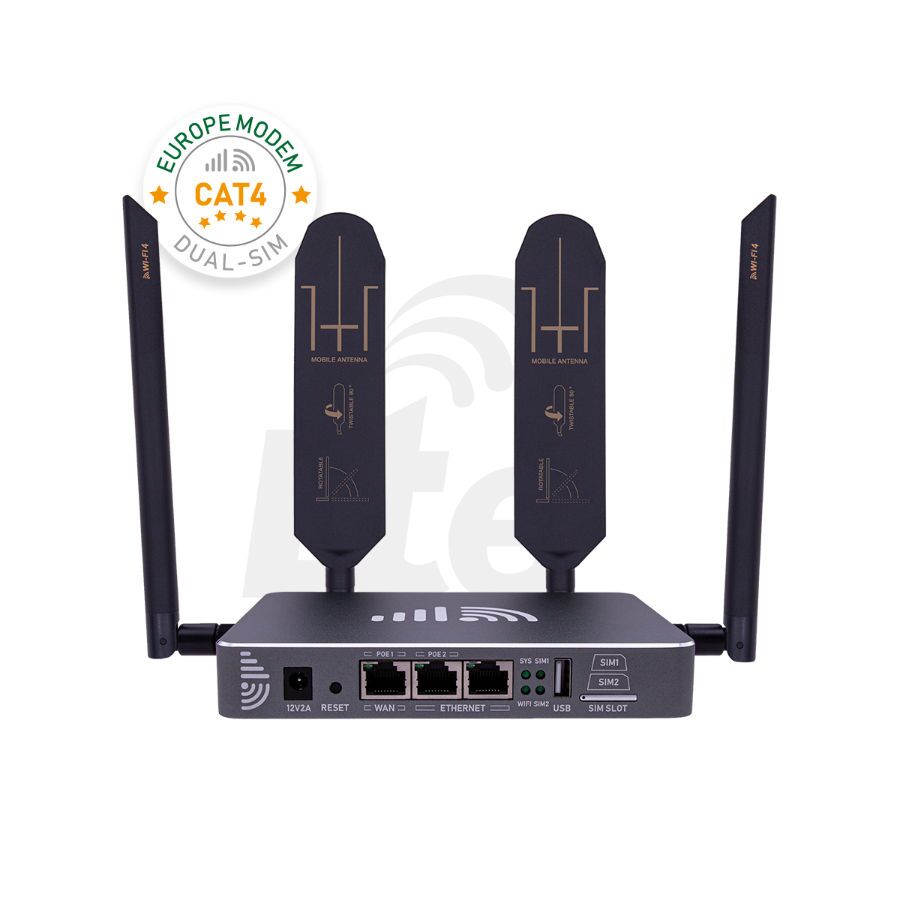

4G SIM Router CAT4 Mobile Modem LTE WiFi
US$186
The 4G SIM card router has an EMEA standard CAT4 LTE modem and SIM card slots. It provides reliable mobile internet on WiFi hotspots, wired LAN ports for rural areas, and when mobile backup internet is needed.
- EMEA European CAT4 LTE modem – Supports 2G 3G and 4G
- Standalone LTE WiFi router – Long-range WiFi and LAN ports
- Industrial-grade M2M router wide-range DC and PoE support
4G SIM Card Modem WiFi Router
CAT4 LTE Modem with Dual SIM Card Slots – EMEA Europe 2G 3G 4G Bands
Standalone Mobile LTE WiFi Router – Industrial 12VDC and 48V PoE Power
CAT4 Modem for EMEA
Category 4 Mobile Modem with Dual SIM Slots
Unlocked for Europe EMEA GSM UMTS LTE Bands
Industrial M2M Modem – Max Speed 150 Mbps
High-gain Antenna
Radio-frequency optimized high-gain MIMO antenna. SMA connectors for external antennas.
Mobile WiFi Ethernet
Access the Internet via WiFi and Ethernet over Mobile networks. 2.4GHz long-range WiFi hotspot.
Rugged Router DC PoE
Flexible power sources – 9~48V DC and PoE
Industrial 6KV 1.5KV lightning protection
Against extreme weather -40°C ~ +80°C
Built-in an EMEA standard mobile LTE modem, the 4G SIM router connects 2G 3G 4G network bands utilized by major European mobile providers, then provides mobile internet on WiFi hotspots and LAN ports.
How Does a 4G SIM Router Work?
The 4G router takes a Nano SIM card to access GSM UMTS and LTE mobile networks on its CAT4 modem, which supports a max 150 Mbps download speed.
It works standalone to provide internet without requiring a phone line. Its WiFi hotspot covers an extended range to serve phones, tablets, and home appliances. It also has two wired LAN ports for computers and switches.
It supports 12V DC power and a 48V PoE injector, making it work on various applications, such as homes, offices, motorhomes, boats, etc. Industrial quality and lighting protection ensure reliable connectivity.
High-gain MIMO Antennas
Pairs of 4G WiFi antennas in RF optimized array. High gain and low VSWR. 4G paddle antennas allow us to aim for the best signal source.
Dedicated 4G Router Firmware
Integrated LTE modem drivers, protocols, and watchdog to provide reliable mobile internet and open-source customizability.
Homes Offices
4G mobile internet w/ backup SIM
Outputs MIMO WiFi and Ethernet
Industry Sites
100Mbps Ethernet and 300Mbps WiFi for IoT, cameras, machines, etc
Boats Vehicles
Flexible DC/PoE power sources
Wide range 9~48VDC input
Business Shops
Isolated Guest WiFi hotspot
QoS smart traffic control
4G SIM Router Hardware Overview
Engineered for demanding industrial environments and applications. Hardened components are rated for extreme temperatures, shocks, and vibration.
Modular hardware design allows seamless integration into your environment, such as upgrading external antennas and swapping DC & PoE power sources.
Package Contents - What Will You Get
Package Contents
1 x 4G Router CAT4 Modem
2 x 4G paddle antenna
2 x WiFi whip antenna
1 x 1-meter LAN cable
1 x AC-DC Power adapter
Note: Exclude PoE Injector
1 review for 4G SIM Router CAT4 Mobile Modem LTE WiFi
Add a review
You must be logged in to post a review.
CAT4 LTE Mobile Modem - E4 & U4
| LTE Category: | CAT.4 (3GPP E-UTRA Release 10) |
| 4G FDD Bands: | B1/B3/B5/B7/B8/B20 Download max 150Mbps / Upload max 50Mbps |
| 4G TDD Bands: | B38/B40/B41 Download max 130Mbps / Upload max 30Mbps |
| 3G Bands: | B1/B5/B8 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| 2G Bands: | GSM/EDGE: B3/B8 EDGE: DL 296Kbps / UL 236.8Kbps GPRS: DL 107Kbps / UL 85.6Kbps |
| Bandwidth: | 1.4/3/5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -40°C colspan='1' +85°C |
| Working Area: | Europe, Africa, Middle East, Korea & Thailand |
| Certification: | RCM/CE/Deutsche Telekom/ICASA/ FAC/GCF |
UK & European Standard Modem
EZEN3X-V3 - Motherboard
| CPU: | Qualcomm Atheros QC9531 |
| Frequency: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8 mm) |
| WAN/LAN port: | 10/100 Mbps |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -40 to +80 °C Storage: -50 to +90 °C |
| Humidity: | 10% ~ 95% RH |
| Measurement: | Router 171x113x25 mm |
| Package: | 300x197x60 mm |
Wi-Fi Hotspot
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412 ~ 2484 MHz |
| Channel: | 1 ~ 13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
4G & WiFi Antennas
| 2 x 4G LTE antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Peak Gain: 3~5dBi / V.S.W.R.: ≤ 3.0 Size: 209 x 42 mm / Material: ABS |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 1.92 Size: Ø13 x 201 mm / Material: TPEE |
| Connector: | SMA Male (Not RP) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
| Temperature: | Working: -0° to 50° Celsius |
Power Supply Options
| DC Socket: | Accepts a wide range of 9~48V DC power input AC/DC power adapter included, as below |
| PoE WAN & PoE LAN Ports: |
48~52V PoE from 802.3af/at compliant power sources PoE injector is not included |
DC Power Adapter
| Input: | AC 110 ~ 240 Volt 50/60 Hz |
| Output: | DC 12 Volt 2.0 Amps |
| Measurement: | 75.7 x 47.2 x 31.3 mm / 140 gram |
| AC Plug: | EU/GB/US/AU Standard AC plugs Ship depends on the destination |
| DC Jack: | Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Length 1200mm |
| Protection: | Short circuit, overload, and over-voltage |
4G Router Firmware Features
A brief overview of the features and functions in the 4G router firmware, based on the version EV3143.
| Mobile Protocol: | Mobile Data, QMI, and PPP |
| Command Sets: | MMCLI, QMI, and AT commands |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Network lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| SIM Switching: | Primary SIM1 by default Choose SIM card or set to auto switch SIM cards |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| LAN/WAN Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and Multi-WAN load balancing |
| Firewall: | New port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, Nslookup |
| VPN Tunnel: | OpenVPN client and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
