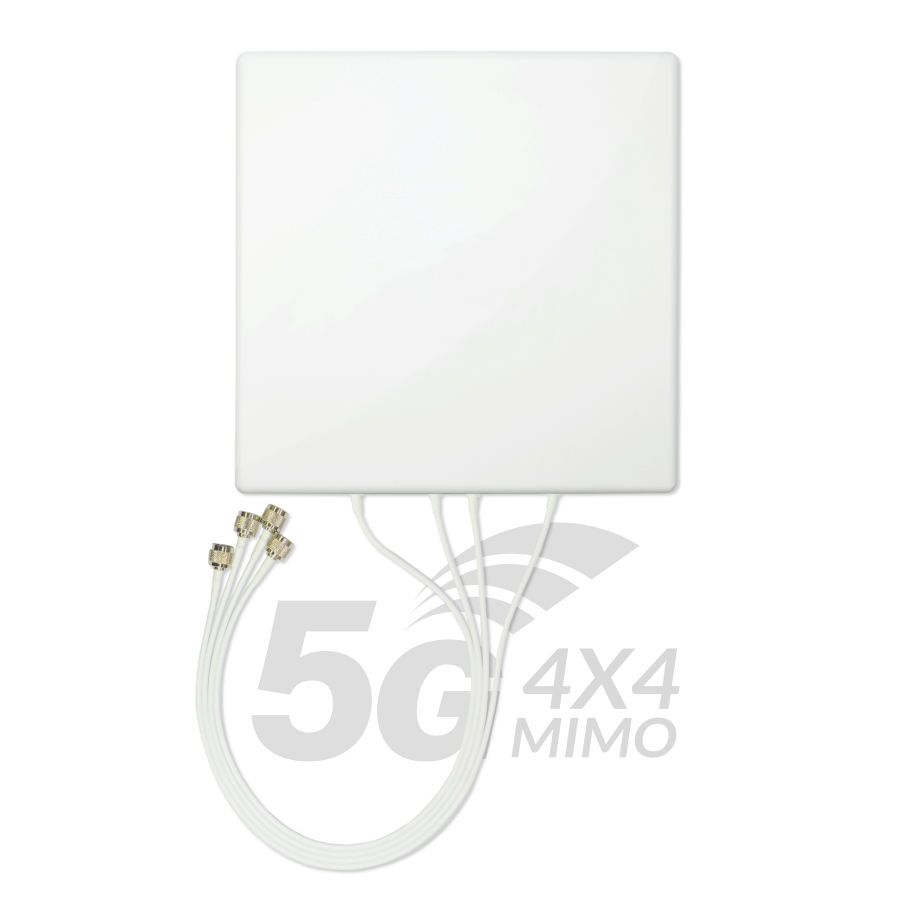

4×4 MIMO 5G Antenna Directional Panel
CA$222 – CA$271
Dual-polarized 4×4 MIMO 5G antenna with four directional panel feeds and four ports. The excellent RF-engineered 5G panel antenna helps you improve the 4G 5G cellular signals for SIM card modems in off-grid sites, rural locations, and distant worksites.
- 4×4 MIMO wideband cellular frequency 698–3800 MHz
- Directional high gain up to 10 dBi and low VSWR ≤ 1.5
- Vertical and horizontal polarization with wide beamwidth
The 4×4 MIMO 5G Antenna is a game-changer for boosting cellular signals for your 4G 5G SIM card modems, especially in signal-blind areas. The all-in-one design with 4 ports, 70 mm length coaxial cable, and low-loss N-male connectors brings you the easiest connection to a SIM card modem.
Check the below key features and antenna specifications about how it helps you overcome weak signals and improve signal stability.
4x Directional Antenna Feeds
Built-in excellent radio frequency engineering optimized feeds, each as large as 12×13.5mm, to maximize 4G and 5G signal receptions. It receives wide-band cellular frequencies from a specific direction you point to. Covering a wide frequency range of 698 to 3800 MHz with up to 10 dBi gain and low V.S.W.R. ≤1.5, it is the perfect solution for maintaining fast and reliable access from mobile networks.

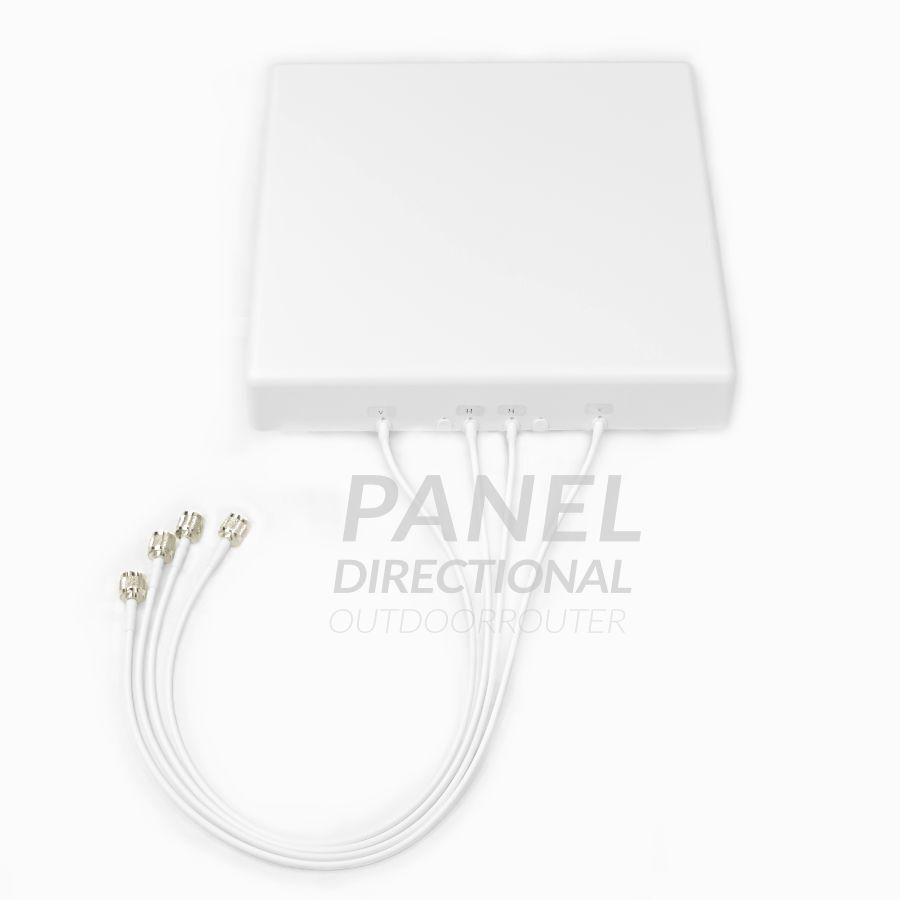

4×4 MIMO Antenna 4 Ports
Designed to work with the latest 5G-NR mobile networks, it integrates 4×4 MIMO antenna ports to help SIM card modems combine more bands, activate carrier aggregation, faster mobile internet speed, and stabler mobile internet connection.
Dual Polarized and Wide Beamwidth
The 4×4 MIMO antenna is cross-polarized with two pairs of horizontal and vertical polarized panel antenna feeds. The wide-angle beamwidth features easy installation. It does not require RF engineering technology to point the antenna at a precise angle.
5G Panel Antenna Specifications
| Frequency Range | 698–960 MHz | 1710–2700 MHz | 3300–3800 MHz |
| Gain | 6 dBi | 8 dBi | 10 dBi |
| Horizontal Beamwidth | 90–120 ° | 60–90 ° | 60–90 ° |
| Vertical Beamwidth | 80–105 ° | 45–85 ° | 45–85 ° |
| Port-to-port Isolation | ≥ 14 dB | ≥ 20 dB | ≥ 20 dB |
| Polarization | Vertical and Horizontal | ||
| V.S.W.R. | ≤ 1.5 | ||
| Input Impedance | 50 Ω | ||
| Max Power | 50 Watt | ||
| Lightning Protection | DC Ground | ||
| Dimensions | 363 x 363 x 58 mm | ||
| Antenna Weight | 1.75 kg | ||
| Radome | White ABS | ||
| Coaxial Cable | 700 mm Length | ||
| Connector Type | 4 x N Male Type | ||
| Operating Temperature | -40 to 60 °C | ||

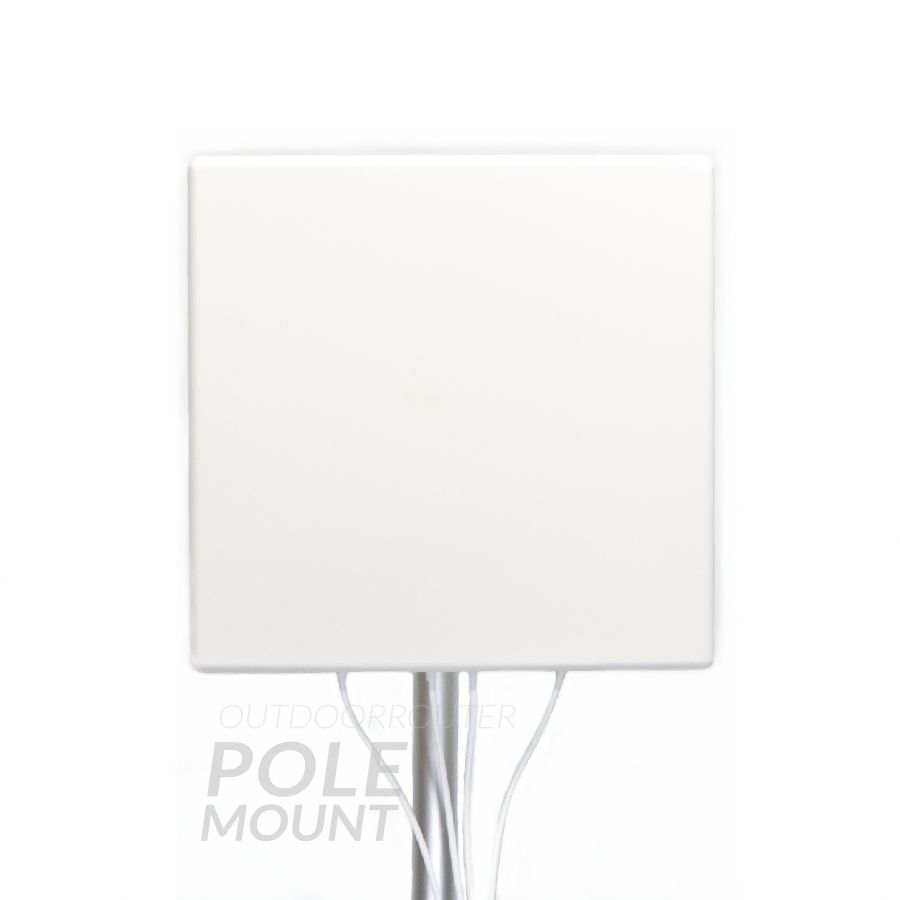

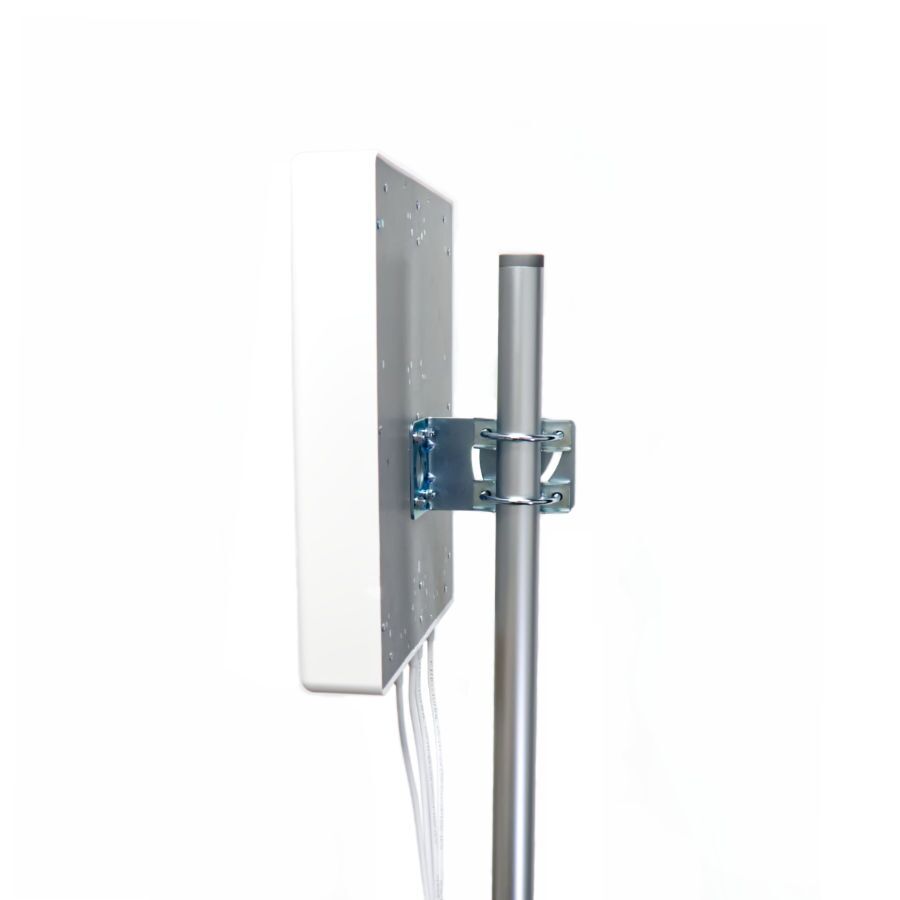

| Mounting | Ø 35–50 mm Pole Holding | ||
| Package | 410 x 370 x 85 mm | ||
