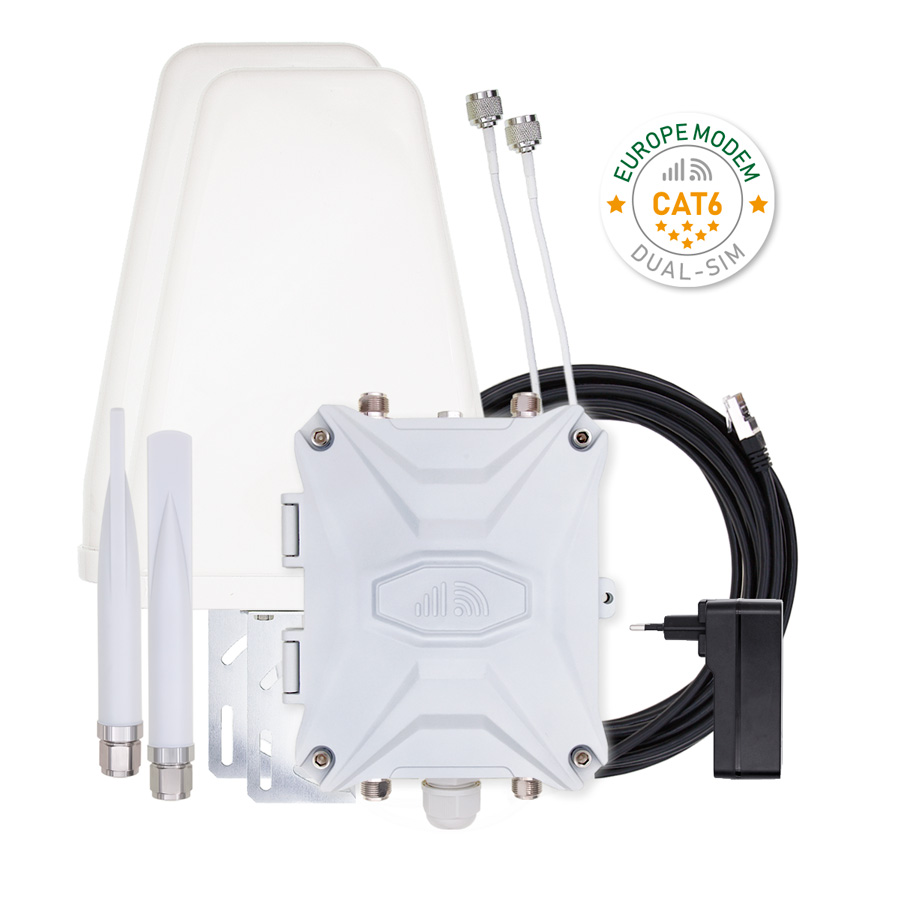

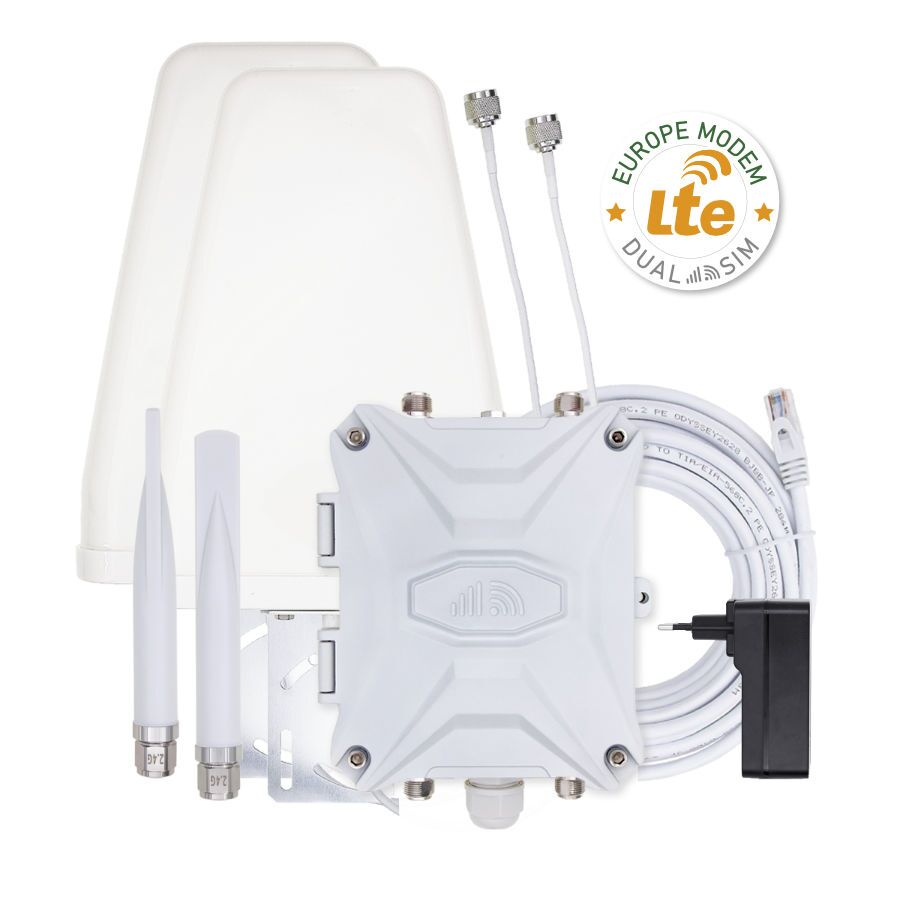

4G SIM Card Outdoor Router External Antennas
A combination of outdoor 4G router and 2x LPDA directional antennas –overcoming weak signals in rural areas.
Europe Outdoor Router 4G SIM External Antennas
US$422 – US$485
A combination of European standard CAT6/12 outdoor 4G router with directional 2x LPDA external antennas, receives the best signals in rural areas and provides fast mobile internet.
Dual SIM and CAT6/12 LTE modem for 3G and 4G European mobile networks.
2.4/5.8 GHz MIMO Wi-Fi5 hotspot covers 150–300 yards in an open area.
Powered by 52V-PoE or 12VDC. Receiving 1 Gbps Ethernet on PoE injector.
European 4G SIM Card Router
Built-in CAT6/12 LTE-Advanced mobile modem, the European outdoor 4G router connects to widely distributed 4G-LTE mobile networks and gets rated max 300–600 Mbps download speed.
It supports all 3G/4G LTE mobile networks in Europe, UK, Australia, and other EMEA & APAC areas. Its unlocked to use any workable SIM cards you have.
Rugged 4G SIM Router for Demanding Applications
Remote & Rural Area
Receive stronger outdoor signals. Get rid of the landline. Enjoy the fast-speed mobile internet.
Outdoor Events
Use a SIM card to set up a temporary internet for outdoor events, campsite, caravan, etc.
Harsh Environments
Provides rugged internet for industrial applications, water treatment, and construction sites.
Directional Outdoor 4G Antenna Array
Includes 2x upgraded LPDA log-periodic antennas. Install both LPDA antennas with a polarization of 90 degrees and point towards mobile towers to receive two times stronger signals on the 4G routers.
Long-range Outdoor Wi-Fi5 Coverage
2.4/5.8 GHz standalone Wi-Fi5 hotspot covers 150–300 yards in open space, connecting up to 57 devices such as cameras, doorbells, etc. It also supports guest Wi-Fi and Wi-Fi repeater.
PoE Power & LAN Ethernet
Comply with 802.3af/at PoE standard, and the outdoor 4G router uses a LAN cable to transmit both DC power and Ethernet data and supports a standard DC power adapter.
The Latest Innovative Waterproof Enclosure
Diecast from anti-corrosion ADC12 aluminum by 100-ton pressure. The outdoor 4G modem router has the unique & modular designed enclosure with a weather-proof coating.
The durable enclosure provides waterproof protection in demanding environments.
A set of o-rings seals and gaskets protects the router against water and dust.
The outdoor enclosure has effective heatsink fins with rain diverters. The 4G modem router works in the temperature range of -40° ~ +80° celsius.
Integrate lighting protection of common 6KV & differential 1.5KV.
The breather valve prevents rupturing or imploding.
Flexible Mounting System
Easily install the router on a pole or wall surface with the robust bracket system.
It offers flexible solutions to install in vertical or horizontal directions.
Powerful & Open-sourced Cellular Router Firmware
Dedicated Cellular Router Firmware
Outdoor router operates as a plug-and-plug Linux router for internet freedom. It's easy to use and with a bundle of advanced tools.
The SIM-card router has integrated modem drivers, mobile protocols, and APN parameters. It also supports mmcli and AT command sets.
The keepalive design brings stable mobile internet connections. Automatically redial modem, reboot router, and switch SIM cards.
Safe & Open-sourced Firmware
Access and control the router with a web browser. It provides full authority to access SSH FTP Telnet, software center, and file system.
It has built QoS, firewall, DNS filter, and multiple-WAN. You can easily control the inbound and outbound traffics.
Supports OpenVPN and WireGuard. You can remotely access it via the Traversal-Cloud. TR069 is available on demand.
What Will You Get in the Package
The package includes the below contents along with a 15-day money-back warranty and 1-year quality guarantee.
You will also receive our zealous customer services and technical supports.

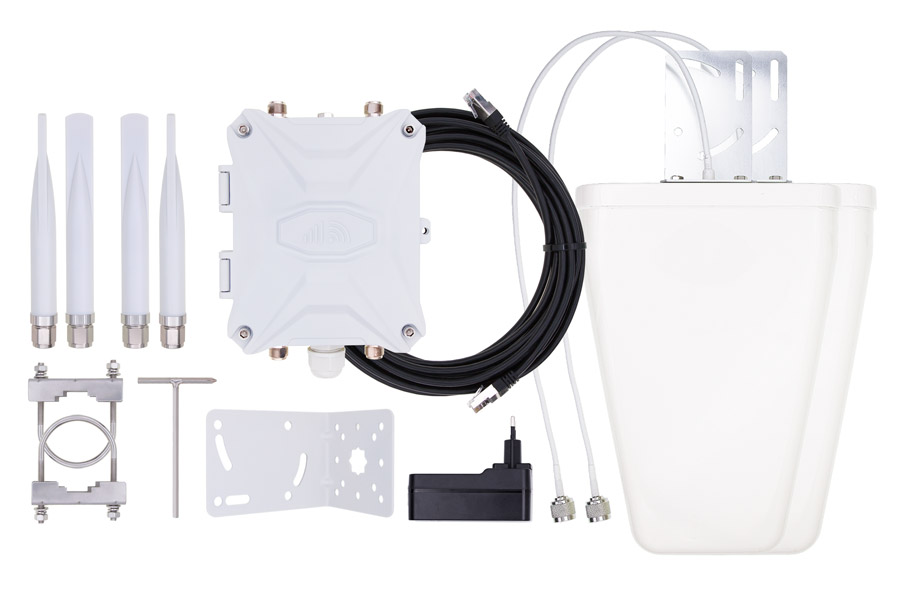

Package Contents
1 x Europe Outdoor 4G Router
2 x 4G LPDA Antenna w/Mounting Kit
4 x Omni Antenna (N-Male)
1 x 10-meter Outdoor LAN Cable
1 x 52V PoE Injector
1 x T-Shape Wrench
1 x Router Mounting Kit
Unboxing the Outdoor 4G Router
LPDA antennas are not shown in the video.
Be the first to review “Europe Outdoor Router 4G SIM External Antennas”
You must be logged in to post a review.
EZR34T - Outdoor 4G Router
Download Quick Guidance
EZR34T-LTE - Online Manual
EZR34T.Router.Works/v/LTE
CAT6–12 Mobile LTE Modem M.2 Key-B
EM060 & EM120 Series Modems
| LTE Modem | EM060K-EA | EM120K-GL | |
| UE Category | Category 6 (3GPP E-UTRA Release 12) | Category 12 (3GPP E-UTRA Release 12) | |
| 4G FDD Bands | B1/3/5/7/8/20/28/32 | B1/2/3/4/5/7/8/12/13/14/B17/18/ 19/20/25/26/28/B29/30/32/66/71 |
|
| 4G TDD Bands | B38/40/41 | B34/38/39/40/41/42/43/B46(LAA) & 48(CBS) | |
| 3G Bands | B1/3/5/8 | B1/2/3/4/5/6/8/19 | |
| Carrier Aggregation | 2x CA - Intra-band and Inter-band | 3x CA Intra-band and Inter-band | |
| Max Data Rates | 4G LTE: DL 300 / UL 50 Mbps 3G UMTS: DL 42 / UL 5.76 Mbps |
4G LTE: DL 600 / UL 150 Mbps 3G UMTS: DL 42 / UL 5.76 Mbps |
|
| Support Antenna | 2xMIMO (Main and Rx-diversity with GNSS) | 2xMIMO (Main and Rx-diversity with GNSS) | |
| Working Area | EMEA, APAC, and Brazil | Global - EMEA, North America, etc |
2x LPDA Directional Antenna
| Frequency: | 698~960/1700~2700MHz |
| Gain: | 9.5dBi |
| V.S.W.R.: | ≤ 1.5 |
| Max Power: | 100 Watt |
| Impedance: | 50 ohm |
| Surge Protection: | Direct Ground |
| Connector: | N-Male |
| Radiating Element: | Copper (CU) |
| Working Area: | -40 to +70°C |
| Measurement: | 390x210x65mm / 100gram |
Motherboard Top Down View
EZEN4X Version 3
EZEN4X_V3 - LTE Router Motherboard
| CPU Chipset: | MTK7621AT MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | SIM1 / SIM2 / Power / System / Wi-Fi / Mobile |
| Consumption: | ≤ 25 Watt |
| Temperature: | Working: -30 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x PoE & LAN and 1x WAN 2x Nano-SIM card slots 1x Reset button |
1200M Dual-band WiFi
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27 ± 2.0 dBm | 24 ± 2.0 dBm |
| Sensitivity: | ≤ -64 ~ -91 dBm | ≤ -55 ~ -82 dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac wave2 | |
| Modulation: | OFDM / BSDK / QPSK / DQPSK / DBPSK | |
| MIMO WiFi: | 2T2R Wave 2.0 MU-MIMO | |
Outdoor Omni Antennas
| 2 x 4G Antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi Antenna: | Frequency: 2400~2500MHz / 5150～5850MHz Gain: 4~5dBi / V.S.W.R.: ≤ 2.0 |
| Connector: | N Male |
| Measurement: | Ø 22 mm / Length 180 mm |
| Material: | ABS and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
PoE Injector w/ Ethernet
| Input: |
AC 100~240Volt 50/60Hz |
| Output: | 52Volt 0.5Amps |
| LAN Cable | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~52 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. DC power supply is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48~52V 0.5A.
EV4X - 4G Router Firmware
Function chart is base on firmware Version EV4052
Read more about EV4X firmware releases & tutorials
| Mobile Protocol: | Mobile Data, MBIM, QMI, and 4G-PPP |
| Command Sets: | MMCLI, QMICLI, and AT command sets |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (Cell ID, RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Mode lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| Link Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and load balancing |
| Firewall: | Open new port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, and Nslookup |
| VPN Tunnel: | OpenVPN, IPSec, and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
