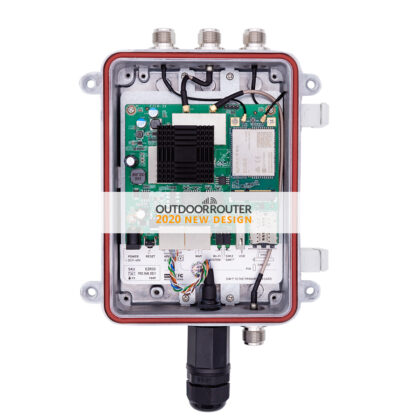

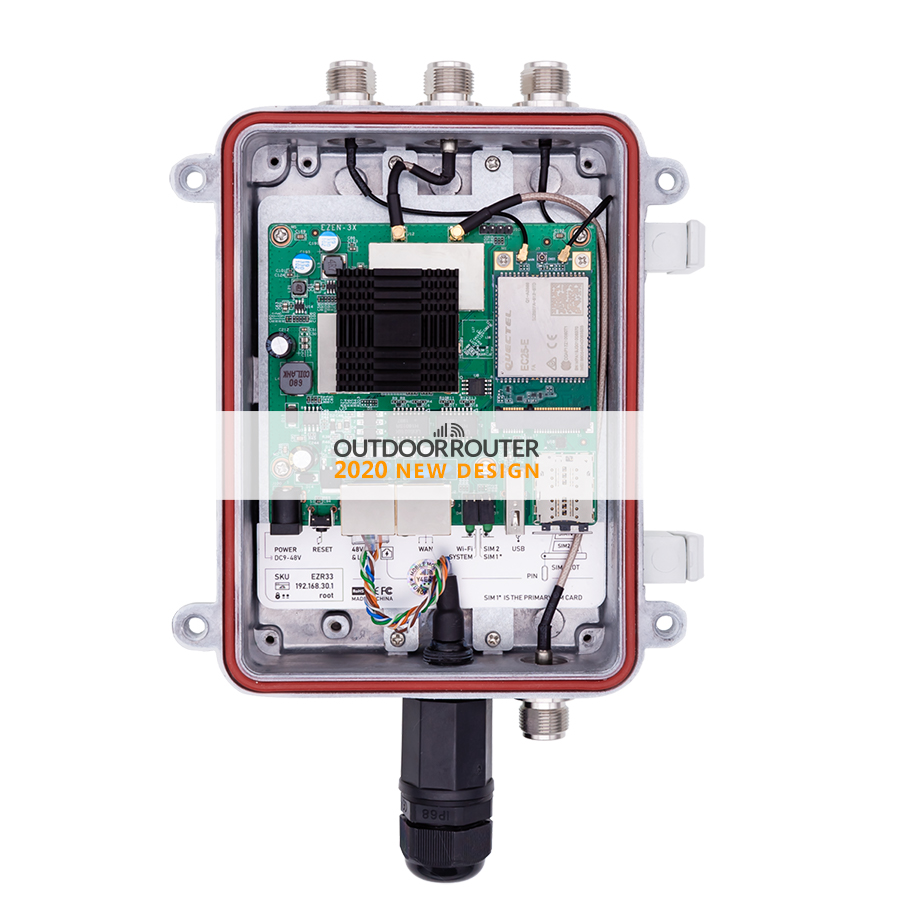

4G Router in Outdoor
IP67 rated case withstand extreme weather and rugged deployments.
❄ Receive stronger mobile signals than the indoor
❄ Reduce signal loss on the antenna cable
❄ Get powerful Wi-Fi hotspot in the outside yard
-5%
Outdoor 4G Cellular CAT4 Router B-Stock
Original price was: US$368.US$348Current price is: US$348.
America 4G cellular router uses dual SIM cards and provides internet on Wi-Fi and Ethernet. Cat4 cellular modem supports most of the American cellular networks.
• Supports cellular networks including LTE bands 66 & 71.
• CAT 4 cellular modem provides a max 150Mbps download speed.
• MIMO 300Mbps Wi-Fi hotspot and IP67 rated waterproof enclosure
﹝B-Stock〕 Including router device, 4G & WiFi antennas, and PoE injector.
Out of stock
America Outdoor 4G Router
Insert a SIM card and get the Internet
Support 3G WCDMA and 4G LTE Cellular Networks
4G Cellular Router – Cat4 Modem with 2x SIM Slot
The newly upgraded outdoor 4G cellular router! Support double Nano-SIM cards. Connect to the SIM1 by default. Include a precise SIM cardholder.
Cat 4 cellular modem inside. Provide max 150Mbps download speed, and 50Mbps upload speed. The sensitive 4G mobile modem supports -101dBm 4G signal.
Support major 3G 4G LTE cellular networks in America. You can use a regular phone SIM card or data SIM card in the 4G router.
Cellular 4G Router with WiFi Hotspot & Ethernet
Powered by 640MHz CPU, the USA cellular 4G router provides 300Mbps Wi-Fi and 100Mbps Ethernet LAN. Provides internet connection to various devices.
Built-in 27dBm Wi-Fi booster, the 4G router creates a powerful wireless hotspot and covers up to 150~300 yards radius in open area. It can support up to 57 concurrent Wi-Fi users. You can adjust the Wi-Fi power or turn it off.
Connect switch, router, or computer to the LAN port on PoE adapter, and extend the 4G internet to an indoor area.
PoE 4G Router - Power over Ethernet
Comply with 802.3af/at PoE standard. The outdoor 4G router uses one single LAN cable for transmitting both power and data.The PoE adapter and 30-feet LAN cable are included in the box.
PoE 4G router supports max 328-feet LAN cable and also supports the 48Volt standard PoE switch.
Need to use on 12Volt or 24Volt DC power?
Install a PoE splitter in the router, and divide electric power to the DC socket.
Mobile 4G Router with External Antennas
Integrated MIMO technology, the mobile 4G router, uses 2T2R MIMO antennas to improve speed and reduce latency.
The mobile 4G router provides 4x type-N waterproof connectors to join the external WiFI & 4G antennas.
The N-female connectors offer low-loss connections. If have a weak 4G signal reception or require to improve the WiFi signal coverage, you can easily upgrade the higher-gain external antennas.
IP67 Waterproof 4G Outdoor Router
IP67 Waterproof
Anti dust and water immersion
Outdoor Lighting Protection
Common 6KV - Differential 1.5KV
Against Extreme Weather
Temperature -40°C ~ +80°C Celsius
Open Sources
Driver Installed
Plug-and-Play
Encryption
Remote Access
SSH Terminal
What Will You Get in the Package
B-Stock Package Contents
1 x CAT4 Outdoor 4G Router
4 x Omni Antenna
1 x 48V PoE Adapter
Exclude LAN Cable and Mounting Bracket
Be the first to review “Outdoor 4G Cellular CAT4 Router B-Stock”
You must be logged in to post a review.
Y4AF - Cat.4 American Cellular Modem
| LTE Category: | CAT.4 (3GPP E-UTRA Release 10) |
| 4G FDD Bands: | B2/B4/B5/B12/B13/ B14/B66/B71 Download max 150Mbps / Upload max 50Mbps |
| 3G Bands: | B2/B4/B5 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| Bandwidth: | 1.4/3/5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity (Except LTE B2) |
| Temperature: | Working: -40°C ~ +80°C |
| Working Area: | North America |
EZEN3X - Motherboard
| CPU: | Qualcomm Atheros QCA9531 |
| Frequency: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8mm) |
| WAN/LAN port: | 10/100Mbps on PoE adapter |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Temperature: | Working: -40 to +80°C Storage: -50 to +90°C |
| Surge Protection: | Common-mode 6 kV Differential mode 1.5 kV |
| Humidity: | 10%~90% RH |
| Measurement: | Router 230x175x70mm / 980g |
Wi-Fi Network
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412~2484 MHz |
| Channel: | 1~13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
4G WiFi Antenna
| 2 x 4G LTE antenna: | Frequency: 698~960 / 1710~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 5dBi / V.S.W.R.: ≤ 2.0 |
| Measurement: | Φ22×180mm |
| Connector: | N Male |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
Power Sources
| PoE Adapter: | Input: 110~24oVAC 50/60Hz Output: 48Volt 0.5Amps |
| LAN Cable: | 30-feet LAN cable included. Max 320-feet. |
| PoE Wiring: |
Ethernet 1, 2, 3, 6 |
| DC Socket: |
9~48Volt 1.5Amps |
Software Systems
| Router Firmware: | OpenEzen System |
| Log in: | IP address: 192.168.30.1 Password: root |
| Computer: | Windows / Mac / Linux / etc |
| Bootloader: | EzBoot (192.168.1.1) |
