US$419
Outdoor 4G WiFi CPE has a CAT12 mobile modem, SIM card slots, and external antennas. It works outside to provide broadband mobile internet on long-distance WiFi & wired LAN.
The LTE-A CAT12 mobile modem supports UK 3G/4G bands and can also roam globally. It has a flexible modular design and a waterproof enclosure to withstand harsh outdoor deployments.
Mobile broadband internet 4G WiFi router
Rugged, waterproof design for use outside
Supports UK 3G 4G Networks And Roam Globally
Broadband LTE+ Modem Max 600 Mbps Speed
Dual SIM Card Slots With Single Standby
Better 4G Signals Outside – Mini RF Disturbs
Long-distance WiFi Coverage 300 Yards
N-Male Connectors And External Antennas
Rugged IP67 Waterproof with Surge Protection
All-Weather Reliable 4G WiFi Internet Gateway
PoE – 52V PoE Injector with 1Gbps Ethernet
DC – Accepts A Wide 9~52VDC Input Range
This industrial-strength outdoor CPE provides reliable broadband 4G-LTE internet in off-grid and challenging environments. It is a dependable 4G WiFi gateway for remote locations and outdoor installations. Designed to work in extreme weather conditions, including rain, snow, heat, and storms, it is ideal for smart city infrastructure, transportation networks, construction sites, and other rugged outdoor settings requiring robust internet connectivity.
Rural Internet
Enhanced 4G signals by external antennas. Deploy fast internet even in off-grid areas.
Outside WiFi Hotspot
Provides broadband mobile internet for boats, motorhomes, campsites, and outdoor events.
Industrial LTE Internet
Delivers LTE WiFi connections for equipment and IoT deployments in challenging environments.
The equipped external antennas help the outdoor SIM card modem to overcome structural obstacles and capture distant signals at optimal strength.
Since deployed outdoors, it can provide extortionary outside WiFi coverage directly from the broadband mobile networks. Meanwhile, indoors can connect to the wired Ethernet from the PoE injector power supply.
Once you insert a workable nano-size SIM card with sufficient 4G signals, the outdoor mobile modem establishes an LTE internet connection to 3G/4G networks. The CAT12 LTE modem employs carrier aggregation to combine multiple LTE bands to deliver fast-speed and low-latency internet.
The WiFi hotspot distributes cellular internet to various wireless devices, including smartphones, tablets, and smart home gadgets. It also supports WiFi relays for links to existing WiFi modems you have.
The PoE injector supplies Ethernet connectivity through wired connections, supporting devices such as computers, network switches, or indoor routers.
Flexible powering options ensure seamless integration into diverse environments and power infrastructures.
Complies with 802.3af & at standard Power over Ethernet (PoE), which transmits DC power and data over Ethernet cable, it can be powered directly from included PoE injectors or external PoE switches up to 50 meters. For longer cable runs, multiple PoE extenders can be utilized.
DC power socket accepts 9~52V voltage to work with AC-DC adapters and 12V battery sources. It accommodates reliable powering through local AC outlets, vehicles, solar power systems, and more.
Optimized firmware system delivers reliable LTE internet connection and seamless plug-and-play experience. Contact us to customize firmware and meet specific needs. An online demo is available upon request.
Integrated 4G modem drivers and advanced mobile protocols.
Supports dual SIM cards, band lock, and 4G IP passthrough.
Exclusive keep-alive watchdog automatically tracks and keeps mobile internet connected. Free Traversal Cloud for remote access.
Supports WiFi relay, guest WiFi, WiFi schedule, custom firewall, multiple-WAN, and OpenVPN IPSec WireGuard VPN tunnels.
Integrates durable construction with modular flexibility to bring robust wired and wireless connections for stable operation under extreme conditions. The modular architecture allows flexible installations and easy external antenna upgrades across various use cases.
We aim to deliver robust hardware and provide an exceptional customer experience before and after purchase.
All hardware enjoys a 15-day money-back guarantee, and you can evaluate performance risk-free. It is backed by a one-year quality warranty covering defects. You can access our dedicated customer support team for the product’s life. Our experts can assist with setup, configuration, troubleshooting, or integration.

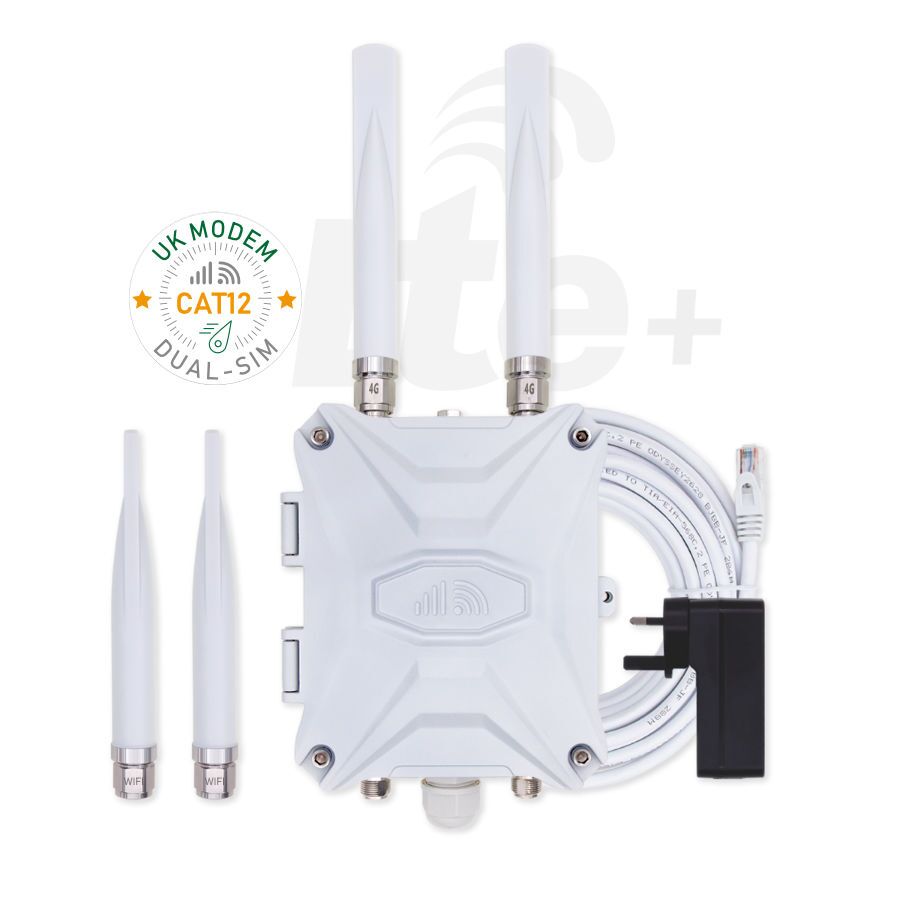

1 x Outdoor 4G SIM Modem
2 x Omni 4G Antenna
2 x Omni WiFi Antenna
1 x 10-meter LAN Cable
1 x 52V PoE Injector
1 x Mounting Set & Tool
You must be logged in to post a review.
EZR34T - Outdoor 4G Router
Download Quick Guidance
EZR34T-LTE - Online Manual
EZR34T.Router.Works/v/LTE
This CAT12 cellular module has a global design frequency spectrum. It supports the 4G router to connect to worldwide main mobile providers.
| Specification | 4G LTE | 3G |
| Bands: | FDD Bands: B1/2/3/4/5/7/8/12/13/14/ B17/18/19/20/25/26/28/ B29/30/32/66/71 TDD Bands: B34/38/39/40/41/42/43/ B46(LAA) & 48(CBS) |
UMTS: B1/2/3/4/5/6/8/19 |
| Download Speed: | Max 600 Mbps | DC-HSDPA: Max 42 Mbps HSUPA: Max 5.76 Mbps WCDMA: Max 384 Kbps |
| Upload Speed: | Max 150 Mbps | WCDMA: Max 384 Kbps |
| Carrier Aggregation: | Download 3x CA Intra-band and Inter-band |
/
|
| Signal Modulation: | 256QAM | 64QAM |
| Output Power: | Class 3 (23 dBm ± 2 dB) | WCDMA: 23 dBm +1/-3 dB |
| 3GPP Release: | 3GPP Release 12 | |
| GNSS: | GPS / GLONASS / BDS / Galileo | |
EZEN4X Version 3
| CPU Chipset: | MTK7621AT MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | SIM1 / SIM2 / Power / System / Wi-Fi / Mobile |
| Consumption: | ≤ 25 Watt |
| Temperature: | Working: -30 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x PoE & LAN and 1x WAN 2x Nano-SIM card slots 1x Reset button |
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27 ± 2.0 dBm | 24 ± 2.0 dBm |
| Sensitivity: | ≤ -64 ~ -91 dBm | ≤ -55 ~ -82 dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac wave2 | |
| Modulation: | OFDM / BSDK / QPSK / DQPSK / DBPSK | |
| MIMO WiFi: | 2T2R Wave 2.0 MU-MIMO | |
| 2 x 4G Antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi Antenna: | Frequency: 2400~2500MHz / 5150～5850MHz Gain: 4~5dBi / V.S.W.R.: ≤ 2.0 |
| Connector: | N Male |
| Measurement: | Ø 22 mm / Length 180 mm |
| Material: | ABS and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
| Input: |
AC 100~240Volt 50/60Hz |
| Output: | 52Volt 0.5Amps |
| LAN Cable | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
| DC Socket: | Takes wide-range 9~52 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. DC power supply is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48~52V 0.5A.
Function chart is base on firmware Version EV4034
Read more about EV4X firmware releases & tutorials
| Mobile Protocol: | Mobile Data, QMI, and 4G-PPP |
| Command Sets: | MMCLI, QMICLI, and AT command sets |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (Cell ID, RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Mode lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| Link Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and load balancing |
| Firewall: | Open new port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, and Nslookup |
| VPN Tunnel: | OpenVPN, IPSec, and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
