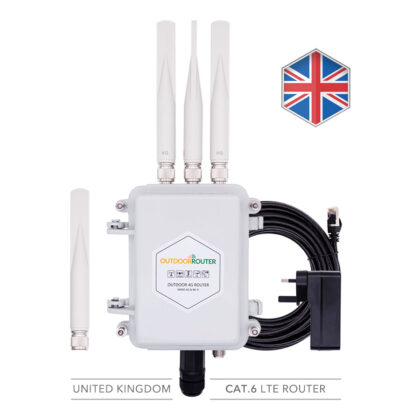

Outdoor UK SIM Router with External Antennas
Wi-Fi 5 router embeds LTE-Advanced CAT 6 mobile modem with dual SIM card slots.
Outdoor 4G Wi-Fi internet router in IP67 waterproof enclosure attaching MIMO external antennas.
Outdoor UK SIM Router 4G Wi-Fi External Antenna
US$356
The outdoor SIM router features an UK standard CAT 6 LTE modem, dual SIM card slots, MIMO external antennas, Wi-Fi 5 hotspots, and 1000 Mbps LAN Ethernet. Stay connected with 4G internet even in rural areas and during outdoor events. It works standalone to deliver max 300 Mbps broadband LTE internet on Wi-Fi hotspots and a wired Ethernet port.
- Reliable broadband LTE internet for rural areas and outdoor events
- UK standard CAT 6 modem supports 3G 4G bands with max 300 Mbps
- Standalone 4G Wi-Fi router with long-range outdoor Wi-Fi 5 coverage
- All-weather operation router with surge and IP67 waterproof protection
CAT6 Mobile SIM Modem
Rel 12 LTE-A Modem – Dual SIM Card Slots
Broadband LTE Internet – Max 300 Mbps
UK SIM Card Modem for 3G/4G Networks
Outdoor Router 4G Wi-Fi
External Antennas – 2×2 MIMO 4G and Wi-Fi
1200 Mbps Hotspots – Cover 150-300 Yards
Avoid Indoor Structural Barriers and Interferences
IP67 Waterproof Router
Rugged Waterproof Router with Surge Protection
All-Weather Reliable 4G Wi-Fi Internet Gateway
Flexible Power PoE and DC
52V PoE Injector with 1Gbps Ethernet Port
DC Accepts A Wide 9~52VDC Input Range
Your Rural 4G Wi-Fi Internet Gateway!
Rugged outdoor router embeds Wi-Fi 5 hotspots, a 4G LTE modem, and two SIM card slots. It features robust industrial-grade protection for all-weather operation and delivers 4G Wi-Fi internet to demanding applications facing rain, snow, heat waves, or thunderstorms. It’s engineered as a reliable outdoor internet gateway for smart cities, transportation, remote areas, and construction sites.
Rural Internet
External antennas receive stronger outdoor signals. Fast broadband internet – Get rid of landlines.
Harsh Deployments
Deploy reliable LTE Wi-Fi Internet for shops, machines, IoT fields, and industrial applications.
Outdoor Events
Set up temporary internet over mobile networks for boats, campsites, and outdoor events.
The outdoor UK SIM router features a mobile CAT6 LTE-Advanced modem compatible with 3G UMTS and 4G LTE networks utilized by major UK mobile providers, including BT Mobile, EE, O2, Three, and Vodafone.
How Does Outdoor SIM Router Work?
After inserting a SIM card, the outdoor router automatically connects to 3G/4G mobile networks using included external antennas.
Then, it provides LTE internet to wireless devices like phones, tablets, and smart appliances linked to its 1200 Mbps Wi-Fi hotspot. It also offers 1000 Mbps wired internet for computers or indoor routers connected to the PoE injector.
The CAT6 LTE modem supports carrier aggregation by combining multiple LTE bands, allowing a maximum 300 Mbps download speed. The 4G Wi-Fi outdoor router works standalone to provide a full-scale mobile internet gateway, and it can also bridge 4G internet to your existing network.
Reliable 4G Wi-Fi Internet Router
Deployed outdoors and using high-gain external antennas, the 4G SIM card router picks up distant mobile signals and avoids indoor barriers. The carrier aggregation enabled CAT6 modem bonds multiple LTE bands, unlocking stable mobile broadband internet. It brings stable internet with extended outdoor Wi-Fi coverage for homes and various industrial uses.
Rugged Router Withstands Extreme Weather
Robust hardware all-weather operation – Reliable LTE internet in challenging conditions.
- IP67 Waterproof Enclosure – Made of anti-corrosion aluminum with outdoor coating, keeping internal electronics protected and preventing water and dust ingress.
- Across Extreme Temperature -40°C to +80°C. External fins for effective heat dissipation.
- Equipped Lighting Protection of (industrial-grade) common 6KV and differential 1.5KV.
Flexible powering options ensure seamless integration into diverse environments and power infrastructures.
52V PoE Injector
Complies with 802.3af/at standard Power over Ethernet (PoE), the outdoor router takes power from included PoE injectors or PoE switches through up to 50 meters of LAN cable. The PoE injector offers 1 Gbps Ethernet speed on its LAN port for indoor wired connection.
Alternative DC Power
DC power socket accepts 9~52V voltage to work with AC-DC adapters and 12V battery sources. It accommodates reliable powering through local AC outlets, vehicles, solar power systems, and more.
Robust 4G Router Firmware
Optimized firmware system delivers reliable mobile internet connection and seamless plug-and-play experience. Contact us to customize firmware and meet specific needs. An online demo is available upon request.
Integrated 4G modem drivers and advanced mobile protocols.
Supports dual SIM cards, band lock, and 4G IP passthrough.
Exclusive mobile watchdog automatically tracks and keeps mobile internet alive. Free Traversal Cloud for remote access.
Supports WiFi relay, guest WiFi, WiFi schedule, custom firewall, multiple-WAN, and OpenVPN IPSec WireGuard VPN tunnels.
Hardware Overview on Outdoor 4G Wi-Fi Router
Integrates durable construction with modular flexibility to bring robust wired and wireless connections for stable operation under extreme conditions. The modular architecture allows flexible installations and easy external antenna upgrades across various use cases.
Shipment Package & Services
We aim to deliver robust hardware and provide an exceptional customer experience before and after purchase.
All hardware enjoys a 15-day money-back guarantee, and you can evaluate performance risk-free. It is backed by a one-year quality warranty covering defects. You can access our dedicated customer support team for the product’s life. Our experts can assist with setup, configuration, troubleshooting, or integration.
Package Contents
1 x Outdoor 4G Router CAT6
2 x Omni 4G Antenna
2 x Omni Wi-Fi Antenna
1 x 10-meter LAN Cable
1 x 52V PoE Injector
1 x Mounting Set & Tool
4 reviews for Outdoor UK SIM Router 4G Wi-Fi External Antenna
Add a review
You must be logged in to post a review.
EZR34T - Outdoor 4G Router
Download Quick Guidance
EZR34T-LTE - Online Manual
EZR34T.Router.Works/v/LTE
CAT6 LTE Modem EMEA & APAC
| LTE Category: | Category 6 (3GPP E-UTRA Release 12) |
| 4G FDD Bands: | B1/3/5/7/8/20/28/32 |
| 4G TDD Bands: | B38/40/41 |
| 3G Bands: | B1/3/5/8 |
| Carrier Aggregation | 2x CA - Intra-band and Inter-band |
| Data Rate (Max): | 4G LTE: DL 300 / UL 50 Mbps 3G UMTS: DL 42 / UL 5.76 Mbps |
| Support Antenna: | 2x2 MIMO (Main and Rx-diversity with GNSS) |
| Temperature: | Working: -25°C ~ +75°C |
| Working Area: | EMEA, APAC, and Brazil |
| Certification: | GCF / CE / RCM |
* Make sure your SIM card is unlocked and activated! *
Supports 3G UMTS and 4G LTE in EMEA APAC areas and Brazil.
Motherboard Top Down View
EZEN4X Version 3
EZEN4X_V3 - LTE Router Motherboard
| CPU Chipset: | MTK7621AT MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | SIM1 / SIM2 / Power / System / Wi-Fi / Mobile |
| Consumption: | ≤ 25 Watt |
| Temperature: | Working: -30 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x PoE & LAN and 1x WAN 2x Nano-SIM card slots 1x Reset button |
1200M Dual-band WiFi
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27 ± 2.0 dBm | 24 ± 2.0 dBm |
| Sensitivity: | ≤ -64 ~ -91 dBm | ≤ -55 ~ -82 dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac wave2 | |
| Modulation: | OFDM / BSDK / QPSK / DQPSK / DBPSK | |
| MIMO WiFi: | 2T2R Wave 2.0 MU-MIMO | |
Outdoor Omni Antennas
| 2 x 4G Antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi Antenna: | Frequency: 2400~2500MHz / 5150～5850MHz Gain: 4~5dBi / V.S.W.R.: ≤ 2.0 |
| Connector: | N Male |
| Measurement: | Ø 22 mm / Length 180 mm |
| Material: | ABS and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
PoE Injector w/ Ethernet
| Input: |
AC 100~240Volt 50/60Hz |
| Output: | 52Volt 0.5Amps |
| LAN Cable | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~52 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. DC power supply is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48~52V 0.5A.
EV4X - 4G Router Firmware
Function chart is base on firmware Version EV4052
Read more about EV4X firmware releases & tutorials
| Mobile Protocol: | Mobile Data, MBIM, QMI, and 4G-PPP |
| Command Sets: | MMCLI, QMICLI, and AT command sets |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (Cell ID, RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Mode lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| Link Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and load balancing |
| Firewall: | Open new port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, and Nslookup |
| VPN Tunnel: | OpenVPN, IPSec, and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
