4G Outdoor Router External Antenna
Rugged 4G Router with CAT4 UK Modem and Dual SIM Card Slots
IP67 Weather-proof Router – Rural 4G WiFi Internet Gateway
UK 4G Outdoor Router CAT4 External Antenna
US$332
The weather-proof 4G outdoor router withstands extreme weather in harsh environments. The built-in UK CAT4 modem supports 2G, 3G, and 4G mobile networks all over the UK. It’s unlocked to use any UK carrier’s SIM cards.
- Reliable 4G mobile internet for remote areas and outdoor events
- CAT4 modem inside for UK mobile providers – EE BT O2 3 Vodafone
- Standalone 4G internet router with dual SIM slots and WiFi hotspot
- Rugged industrial-grade 4G router in IP67 waterproof enclosure
UK CAT4 3G/4G Modem
CAT4 UK Modem with Two Nano SIM Card Slots
Access UK Europe Mobile 2G/3G/4G Networks
Unlocked – Support Major UK Mobile Carriers
Outside 4G WiFi Coverage
Avoid Indoor Barriers and RF Signal Interferences
External Antennas – Best Available Mobile Signals
Outdoor 4G Internet – Long-range WiFi Hotspots
IP67 Weather-proof Router
Rugged Waterproof Enclosure w/ Surge Protection
Reliable Connectivity in Harsh Environment
Flexible PoE & DC Power
Power by 48V PoE Injector (included)
DC Socket for Broad 9~48V DC Power
4G Outdoor Router for Demanding Conditions
With IP67 waterproofing, extreme temperature hardening, and surge protection, the 4G outdoor router provides reliable 4G internet in harsh environments facing rain, snow, heat waves, or thunderstorms. The rugged hardware makes it an ideal 4G internet gateway for smart cities, transportation, rural area, and industrial applications.
Remote & Rural Area
Receiving stronger outdoor signals and faster 4G mobile internet. Get rid of slow landlines.
Outdoor Events
Use a SIM card to set up temporary internet for boats, vehicles, campsites, and outdoor events.
Harsh Deployments
Deploy reliable 4G WiFi internet for shops, IoT fields, and industrial applications.
Built-in UK standard CAT4 mobile modem, the 4G outdoor router supports all the 2G, 3G, and 4G network bands utilized by major UK mobile providers, including BT Mobile, EE, O2, Three, and Vodafone.
How Does 4G Outdoor Router Work?
The 4G outdoor router is a standalone networking router with a mobile modem, dual SIM card slots, WiFi hotspots, and wired Ethernet connectivity.
After inserting a SIM card, the outdoor router connects to the internet through 4G LTE mobile networks with a maximum 150Mbps download speed.
It provides mobile internet to wireless devices like phones, tablets, and smart appliances linked to its WiFi hotspot. It also passes through the internet on wired connections such as computers, switches, or indoor routers connected to the LAN port on the PoE injector.
Outside 4G Internet Gateway
Directly receiving the best outdoor 3G/4G signals with the included external antenna, the outdoor router accesses the mobile internet. It bypasses structural barriers and indoor signal interferences from home appliances and RF sources. It’s the ideal 4G internet gateway for rural areas and signal-weak locations, especially when a landline is unavailable or has a slow speed.
Weather-proof Router IP67 Protection
Withstand extreme weather and deploy reliable 4G WiFi internet in outdoor environments.
- IP67 Waterproof Enclosure – Made of anti-corrosion aluminum with outdoor coating, keeping internal electronics protected and preventing water and dust ingress.
- Across Extreme Temperature -40°C to +80°C. External fins for effective heat dissipation.
- Equipped Lighting Protection of (industrial-grade) common 6KV and differential 1.5KV.
Flexible powering options ensure seamless integration into diverse environments and power infrastructures.
48V PoE Injector
Complies with 802.3af & at standard Power over Ethernet (PoE), which transmits DC power and data over Ethernet cable, it can be powered directly from included PoE injectors or external PoE switches up to 50 meters. For longer cable runs, multiple PoE extenders can be utilized.
Alternative DC Power
DC power socket accepts 9~48V voltage to work with AC-DC adapters and 12V battery sources. It accommodates reliable powering through local AC outlets, vehicles, solar power systems, and more.
Mobile SIM Router Firmware System
Optimized firmware system delivers reliable mobile internet connection and seamless plug-and-play experience. Contact us to customize firmware and meet specific needs. An online demo is available upon request.
Integrated 4G modem drivers and multiple mobile protocols.
Supports dual SIM cards, band lock, and 4G IP passthrough.
Exclusive mobile watchdog automatically tracks and keeps mobile internet alive. Free Traversal Cloud for remote access.
Supports WiFi relay, guest WiFi, WiFi schedule, custom firewall, multiple-WAN, and OpenVPN IPSec WireGuard VPN tunnels.
Hardware Overview on Outdoor 4G Router
Integrates durable construction with modular flexibility to bring robust wired and wireless connections for stable operation under extreme conditions. The modular architecture allows flexible installations and easy external antenna upgrades across various use cases.
Shipment Package & Services
We aim to deliver robust hardware and provide an exceptional customer experience before and after purchase.
All hardware enjoys a 15-day money-back guarantee, and you can evaluate performance risk-free. It is backed by a one-year quality warranty covering defects. You can access our dedicated customer support team for the product’s life. Our experts can assist with setup, configuration, troubleshooting, or integration.

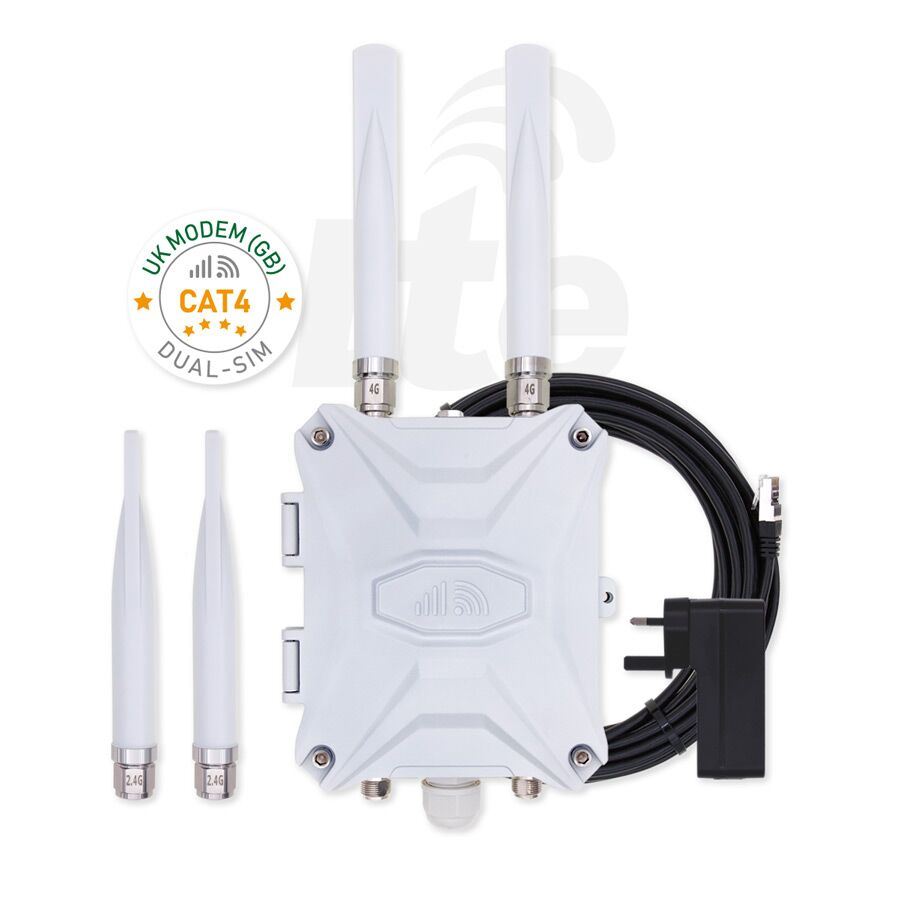

Package Contents
1 x 4G Outdoor Router CAT4
2 x Omni 4G Antenna
2 x Omni WiFi Antenna
1 x 10-meter LAN Cable
1 x 48V PoE Injector
1 x Mounting Set & Tool
1 review for UK 4G Outdoor Router CAT4 External Antenna
Add a review
You must be logged in to post a review.
CAT4 LTE Mobile Modem - E4 & U4
| LTE Category: | CAT.4 (3GPP E-UTRA Release 10) |
| 4G FDD Bands: | B1/B3/B5/B7/B8/B20 Download max 150Mbps / Upload max 50Mbps |
| 4G TDD Bands: | B38/B40/B41 Download max 130Mbps / Upload max 30Mbps |
| 3G Bands: | B1/B5/B8 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
| 2G Bands: | GSM/EDGE: B3/B8 EDGE: DL 296Kbps / UL 236.8Kbps GPRS: DL 107Kbps / UL 85.6Kbps |
| Bandwidth: | 1.4/3/5/10/15/20MHz |
| Support Antenna: | DL MIMO, supports Rx-diversity |
| Temperature: | Working: -40°C colspan='1' +85°C |
| Working Area: | Europe, Africa, Middle East, Korea & Thailand |
| Certification: | RCM/CE/Deutsche Telekom/ICASA/ FAC/GCF |
UK & European Standard Modem
EZEN3X-V3 - Motherboard
| CPU: | Qualcomm Atheros QCA9531 |
| Clock Speed: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8 mm) |
| WAN/LAN port: | 10/100 Mbps |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Surge Protection: | Common-mode 6 kV Differential mode 1.5 kV |
| Temperature: | Working: -40 to +80 °C Storage: -50 to +90 °C |
| Humidity: | 10% ~ 95% RH |
| Measurement: | Router 148x183x55 mm |
| Package: | 303x249x129 mm / 2400 gram |
Wi-Fi Hotspot
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412 ~ 2484 MHz |
| Channel: | 1 ~ 13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
4G & WiFi Antennas
| 2 x 4G LTE antenna: | Frequency: 698~960 / 1710~2170 / 2300~2700MHz Peak Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 2.0 |
| Measurement: | Ø23 x 181 mm |
| Material: | ABS |
| Connector: | N Male |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
PoE Injector
| Input: | AC 110 ~ 240 Volt 50/60 Hz |
| Output: | 48 Volt 0.5 Amps |
| PoE Wiring: | Ethernet 1, 2, 3, 6 DC+ 4, 5 and DC- 7, 8 |
| AC Plug: | EU/GB/US/AU standard AC plugs Ship depends on the destination |
| LAN Cable: | 10-meter outdoor-grade Ethernet cable included. Supports max 50 meters. |
Power Supply Options
| DC Socket: | Accepts a wide range of 9~48V DC power input AC/DC power adapter is not included |
| PoE WAN & PoE LAN Ports: |
48~52V PoE from 802.3af/at compliant power sources PoE injector is included, as above |
EV3X Open Source Router Firmware
A brief overview of the features and functions in the 4G router firmware, based on the version EV3143.
| Mobile Protocol: | Mobile Data, QMI, and PPP |
| Command Sets: | MMCLI, QMI, and AT commands |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Network lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| SIM Switching: | Primary SIM1 by default Choose SIM card or set to auto switch SIM cards |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| LAN/WAN Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and Multi-WAN load balancing |
| Firewall: | New port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, Nslookup |
| VPN Tunnel: | OpenVPN client and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
