5G SIM Router Outdoor
5G LTE modem with dual SIM card slots
Robust CPE router with external antennas
NEW
5G
5G

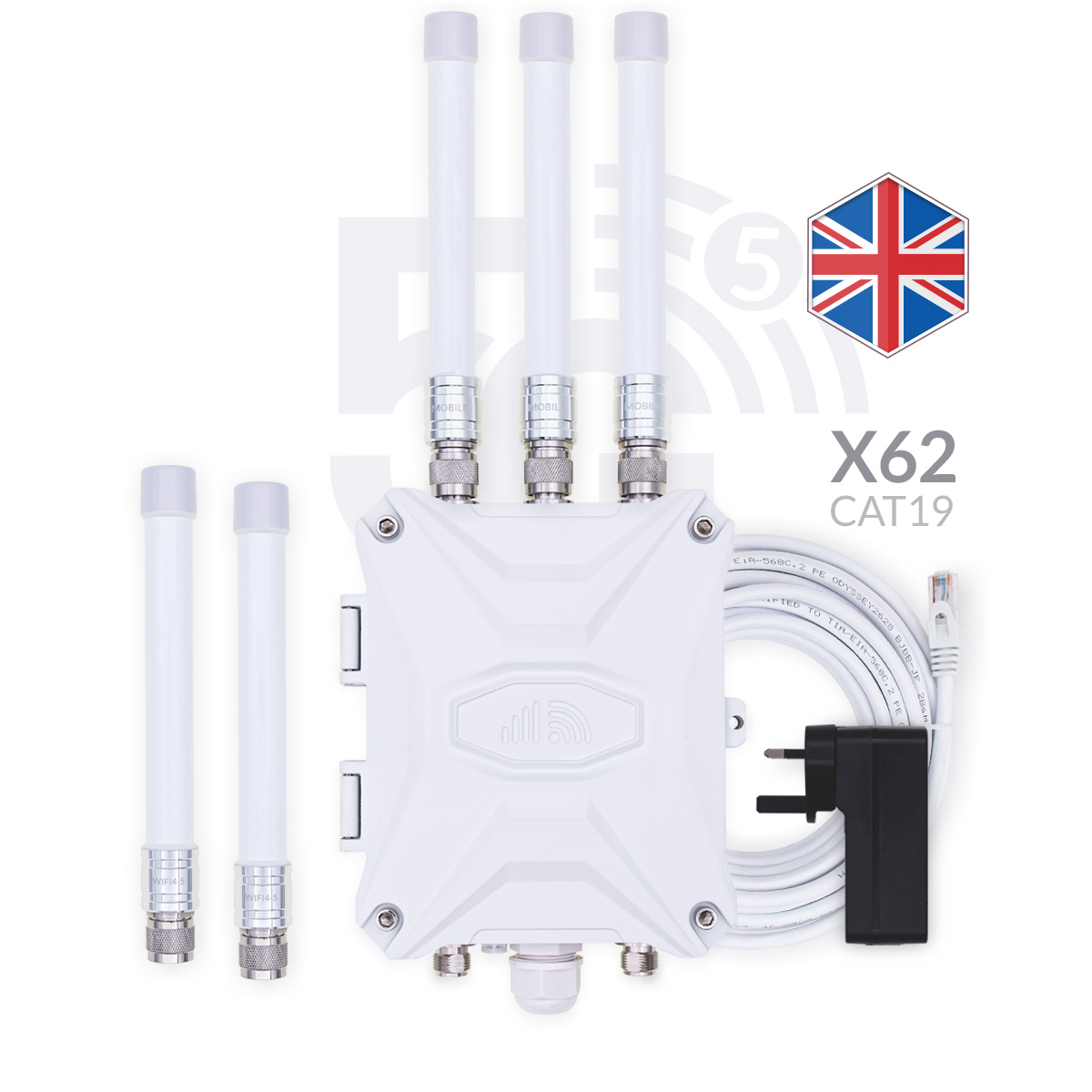

UK Outdoor 5G Router External CPE Mobile SIM Modem
US$489
The outdoor 5G router has a 5G-NR modem and dual SIM card slots to provides 5G broadband internet for homes, shops, industrial sites, rural areas, and outdoor events. It supports all the 5G LTE mobile networks in the UK with auto LTE Cat.19 fallback.
The MIMO external antennas receive the best 5G LTE mobile signals outside and broadcast powerful WLAN signals for outdoor internet. The IP67 waterproof router box is suited to rugged applications and challenging environments.
5G LTE Dual-SIM Modem
5G broadband internet – Max 3,400 Mbps
Supports all of the UK 5G LTE mobile carriers
LTE Cat.19 fallback. EMEA APAC roaming.
External 5G WLAN Antennas
High-gain MIMO omni external antennas
Standalone powerful WLAN 2.4G & 5.8G
Outdoor 5G WiFi covers 100-300 meters
IP67 Waterproof Router
Industrial 5G router with surge protection
For extreme weather & rugged deployments
PoE Ethernet and DC Power
1Gbps LAN Ethernet on PoE injector
Supports 9~48 Volt DC power input
What is a Outdoor 5G SIM Router?
The outdoor 5G router connects the SIM card to 5G mobile networks and delivers broadband internet on WLAN and Ethernet to phones, computers, cameras, and indoor routers.
Why Use 5G Router in Outdoor?
Due to barriers and interference, the indoor 5G signal might be weak and unstable. The outdoor 5G router is designed to install outside to directly pick up the best available 5G LTE mobile signals on its high-gain external antennas. It is a standalone wireless router with LAN Ethernet and WLAN hotspots to provide 5G internet for outdoor events, outside cameras, IoT sensors, etc.
Outdoor 5G Router Benefits
The outdoor 5G router supports NSA/SA operation with a rated max 3.4Gbps download speed over Sub-6 GHz 5G-NR networks. It can support 3G and 4G-LTE Cat.19 fallback while a 5G signal is unavailable. It supports Nano SIM cards on both SIM slots. You can choose the mobile carrier and data package flexibly.
Outdoor 5G Router Applications
Mobile 5G Internet
Broadband mobile 5G LTE home internet
Failover SIM card internet for business
Rural 5G LTE internet for remote areas
Industrial 5G SIM Gateway
Enables industry automation and control
For vehicle communication & coordination
Dual SIM slots with failover backup
5G WLAN Hotspots
Large-scale broadband wireless access
LTE/5G Backup Connectivity
Redundancy for wired internet connections
Temporary & Outdoor Events
Short-term internet for live concerts etc
Deployable network for emergencies
IP67 Waterproof Box & 5G Firmware
The Outdoor 5G Router has an IP67-rated patented waterproof box for work in extreme weather and demanding environments in the long term.
IP67 Waterproof
Anti dust and water immersion
Outdoor Lighting Protection
Common 6KV – Differential 1.5KV
Against Extreme Weather
Temperature -40°C ~ +80°C Celsius
Powered by open-source firmware, the 5G modem router firmware is plug-and-play, easy to use, root authority granted, and with advanced tools.
Integrated 5G modem drivers and multiple mobile protocols.
Supports dual SIM cards, band lock, and mobile IP bridge.
Supports WiFi relay, guest WiFi, WiFi schedule, custom firewall, multiple-WAN, VPN tunnels, and free cloud access.
Please contact us for the online demo.
Power Sources – PoE & DC Powers
Outdoor 5G router supports seamless switching between PoE and DC powers. The default power source is an 802.3at standard PoE injector. You can use the default 10-meter cable to power up the router and get 1Gbps Ethernet on the injector. It also accepts power from a PoE switch and PoE extender.
The DC socket supports 9~48 Volt DC power, including typical 12 Volt DC power from an AC-DC power adapter and 12 Volt battery pack.
What Will You Get In The Package
The package includes the below contents along with a 15-day money-back warranty and one year quality guarantee.
You will also receive our zealous customer service and technical support.
Package Contents
1 x Outdoor 5G Router
3 x Omni FRP 5G-NR Antenna
2 x Omni FRP WiFi Antenna
1 x 10-meter Cat.6 LAN Cable
1 x PoE Injector with UK Plug
1 x Mounting Set & Tool
Frequently Asked Questions
Resources
Click Specification Tab
to view technical specifications.
Download Quick Guidance of EZR34T Outdoor Router
Visit the Online User Manual
Got a question? Contact Us or acquire an online demo.
Services
How long does it take to arrive?
We offer Free Shipping and safe Express delivery from the UK warehouse.
Lead time is 24 hours in working days. The shipping couriers are DPD and RoyalMail, and the transit time is 24~48 hours.
The backorder and out-of-stock products will ship from the factory or other warehouses, and the transit time is 4~6 days.
What is your return policy?
We offer a 15-day money-back guarantee upon receiving the shipment and provide a 1-year warranty on the product quality. Check more on the warranty policy.
Modem & SIM Card
What kind of SIM card & data plan are suitable?
The outdoor SIM router is unlocked to use any workable data plan, such as a regular phone SIM, data-only plan, or IoT data plan. It supports major UK mobile providers, such as BT EE O2 Three Vodafone, and most virtual mobile providers.
The SIM card slot(s) takes Nano standard SIM card, 0.5" by 0.3" inch (12.3x8.8mm). Please ensure the SIM card is workable and has enough data allowance.
Note: Using a 5G data plan on the 4G LTE router will connect to the 4G-LTE mobile network, and using a 4G data plan on the 5G router will also access the 4G-LTE network.
What are the major differences between 4G/5G outdoor routers?
The EZR34(T) series routers offer 1Gbps LAN and 1200Mbps WiFi with CAT12 LTE-Advanced or 5G-NR mobile modem. They can provide fast-speed 4G/5G mobile internet for high-traffic applications such as gaming and video streaming.
The EZR33(L) series routers provide 100Mbps LAN and 300Mbps WiFi with CAT4 or CAT6 mobile LTE modem. These are the economical mobile SIM routers for low-traffic demands and essential mobile internet solutions such as rural internet, IoT applications, etc.
| Router SKU | LAN | WiFi | Category | Max Download |
| EZR34T-U520 | 1Gbps | 1200Mbps | 5G-NR NA & NSA LTE CAT19 |
3.4 Gbps |
| EZR34T-U012 | 1Gbps | 1200Mbps | LTE CAT12 | 600 Mbps |
| EZR33T-U6 | 100Mbps | 300Mbps | LTE CAT6 | 300 Mbps |
| EZR33T-U4 | 100Mbps | 300Mbps | LTE CAT4 | 150 Mbps |
Outdoor 5G Router Usages
How does the outdoor 5G router work?
The outdoor 5G router has dual SIM card slots and a 5G-NR mobile modem inside. It has external omnidirectional antennas to pick up the best outdoor mobile signals.
After inserting a workable 5G data-plan SIM card, the 5G modem connects to the mobile networks and provides broadband 5G internet connections on WiFi and Ethernet.
Does it support mobile carrier aggregation?
The 5G-NR modem supports max 4x carrier aggregations. The carrier aggregation connection will automatically turn on when there are sufficient signals. Read more about carrier aggregation technology.
How is the 5G router workable in my area?
Firstly, you need an activated SIM card with a 5G data plan and enough data allowance. Then, the location should have a fair 5G signal coverage. You can put the SIM card in a 5G mobile phone and check the 5G signals. To measure the 5G signal quality accurately, please check the 5G-NR signal tutorial.
If the mobile signal is too weak, suggest changing the location and installing it at a higher altitude. Upgrading the 5G antenna to higher-gain and directional aerials is helpful to get the best available signals.
Using a mobile signal booster with outdoor 5G routers is not recommended since it increases the noise level, which causes slower internet speed and even massive packet loss.
How to install the outdoor router?
The outdoor 5G router includes a complete mount kit, including brackets, wrench, and manual. You can turn the L-shape bracket to install the router in multiple directions. The suggested installation is on a vertical Ø35~50mm pole. The pole is not included.
Can I power the outdoor router with 12Volt power?
The outdoor 5G router uses default IEEE 802.3at standard 52Volt PoE power.
It has a DC socket to take a wide range of 9~52Volt DC power. The supported DC jack is Ø 5.5/2.1 jack. Do not use overloaded electric power. For example, the typical 12Volt power should have a 1.5~2.0Amps current.
Does it support remote access?
We offer free cloud access on all outdoor routers. You may access the router on a web browser anytime, anywhere. Due to privacy and security, the cloud access is turned off on default settings. Read more about how to turn on remote cloud access.
3 reviews for UK Outdoor 5G Router External CPE Mobile SIM Modem
Add a review
You must be logged in to post a review.
5G-NR Mobile SIM Card Modem
RM520N - Powered by Qualcomm Snapdragon X62 5G Modem-RF Baseband Chipset
(520EU) 5G-NR Mobile SIM Modem X62
| Specification | 5G NR | 4G LTE |
| Category: |
3GPP Release 16 (R16) |
Download CAT19 Upload CAT18 |
| Bands: | 5G-NR NSA & SA: N1 3 5 7 8 20 28 38 40 41 71 75 76 77 78 |
FDD: B1 3 5 7 8 20 28 32 71 TDD: B38 40 41 42 43 |
| Download Speed: | 5G NSA: 3.4 Gbps 5G SA: 2.4 Gbps |
1.6 Gbps |
| Upload Speed: | 5G NSA: 550 Mbps 5G SA: 900 Mbps |
200 Mbps |
| 3G WCDMA: | Band 1 5 8 DL 42 / UL 5.76 Mbps |
|
| Temperature: | Working: -30°C ~ +75°C | |
| Modem Cert.: | CE RCM RoHS | |
| Region: | UK, Europe, Australia, EMEA & APAC. | * Except Japan and North America. |
Note: The presented download and upload speed are theoretical max rates, and the actual speed rate depends on network conditions.
Motherboard Top Down View
EZEN4X Version 2
EZEN4X_V2 - Router Motherboard
| CPU Chipset: | MTK7621AT MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | SIM1 / SIM2 / Power / System / Wi-Fi / Mobile |
| Consumption: | ≤ 25 Watt |
| Temperature: | Working: -30 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x PoE & LAN and 1x WAN 2x Nano-SIM card slots 1x Reset button |
1200M Dual-band WiFi
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27 ± 2.0 dBm | 24 ± 2.0 dBm |
| Sensitivity: | ≤ -64 ~ -91 dBm | ≤ -55 ~ -82 dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac wave2 | |
| Modulation: | OFDM / BSDK / QPSK / DQPSK / DBPSK | |
| MIMO WiFi: | 2T2R Wave 2.0 MU-MIMO | |
Outdoor FRP Antennas
| 3 x 5G Antenna: | 600~960 / 1710~2170 / 2300~2700 / 3300~3800 MHz 2 ± 1 dBi Gain / ≤ 4.0 V.S.W.R. / >35% Efficiency |
| 2 x Wi-Fi Antenna: | 2400~2500 / 5150~5850 MHz Gain: 5 dBi / V.S.W.R.: ≤ 1.92 / >65% Efficiency |
| Connector: | N Male |
| Measurement: | Ø 20 mm / Length 200 mm |
| Material: | Fiberglass pipe and PCBA feed |
| Polarization: | Linear Polarization |
| Impedance: | 50 Ω |
PoE Injector w/ Ethernet
| Input: |
AC 100~240Volt 50/60Hz |
| Output: | 52Volt 0.5Amps |
| LAN Cable | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~52 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. DC power supply is not included.
2. Do not input overloaded power, especially the electric current!
3. The typical DC power sources are 12V 1.5~2.0A or 48~52V 0.5A.
EV4X - 5G Router Firmware
Function chart is base on firmware Version EV4041
Read more about EV4X firmware releases & tutorials
| Mobile Protocol: | Mobile Data, QMI, and 4G-PPP |
| Command Sets: | MMCLI, QMICLI, and AT command sets |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (RSRQ RSRP SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Mode lock between 3G 4G and 5G 3G/4G/5G Band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/Off as you set |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| Link Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | SQM and Multi-WAN load balancing |
| Firewall: | New port, port forwarding, and custom rules |
| Diagnostics: | Ping Traceroute and Nslookup |
| VPN Tunnel: | IPSec OpenVPN and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
