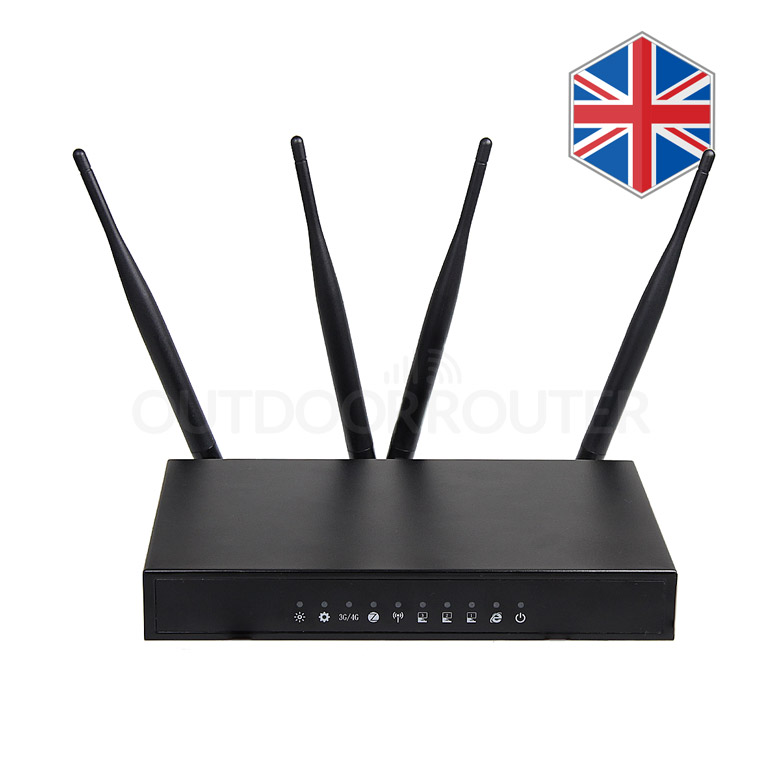

4G SIM Router UK Mobile Modem LTE CAT6
US$219
The UK 4G SIM router has an M2M industrial-grade mobile modem and SIM card slots to access 3G 4G mobile networks. It provides mobile broadband internet on standalone WiFi hotspots and wired LAN ports for up to 57 devices at homes and offices.
- CAT6 LTE-Advanced modem supports major UK 3G/4G bands
- Standalone LTE WiFi router – Long-range Ample WiFi Coverage
- Industrial-grade Modem Router Supports PoE and DC Power
4G Router UK LTE+ SIM Modem
UK 4G SIM Router with Mobile LTE Modem and Dual SIM Card Slots
Broadband Internet from 3G/4G Networks – Works Standalone with LAN and WiFi
UK CAT6 LTE-A Modem
CAT6 Mobile Modem with Dual SIM Slots
Dual Carrier Aggregation – Max 300Mbps
Unlocked – Access Major UK 3G 4G Bands
High-gain Antenna
Radio-frequency optimized high-gain MIMO antenna. SMA connectors for external antennas.
LTE WiFi Gateway
Access the Internet via WiFi and Ethernet over Mobile networks — 1-watt ample WiFi coverage.
Rugged Router DC PoE
Flexible power sources – 9~48V DC and PoE
Industrial 6KV 1.5KV lightning protection
Against extreme weather -40°C ~ +80°C
Built-in UK standard mobile LTE-Advanced modem, the 4G SIM router connects to 3G, 4G, and 4G+ network bands. The unlocked mobile modem supports all major UK mobile carriers. It also supports roaming in Europe and EMEA areas.
How Does a 4G SIM Router Work?
After inserting a SIM card, the mobile LTE modem connects to the 3G/4G mobile networks with a maximum 300Mbps download speed. Then, it provides mobile internet to wireless devices like phones, tablets, and smart appliances. Its LAN ports also provide wired internet to computers, switches, or indoor routers.
The CAT6 LTE modem supports carrier aggregation by combining multiple LTE bands and increasing the data rate and mobile internet speed.
The 4G LTE outdoor router works standalone with Mobile internet, input WAN, and WiFi relay. It can also bridge 4G internet to your existing network.
High-gain 4G Paddle Antennas
Wide-range LTE antennas cover global 4G mobile frequency bands. Twist the paddle antenna and aim outside to improve reception in weak signal areas.
Dedicated 4G Router Firmware
Integrated LTE modem drivers, protocols, and watchdog to provide reliable mobile internet and open-source customizability.
Homes Offices
4G mobile internet w/ backup SIM
Outputs MIMO WiFi and Ethernet
Industry Sites
100Mbps Ethernet and 300Mbps WiFi for IoT, cameras, machines, etc
Boats Vehicles
Flexible DC/PoE power sources
Wide range 9~48VDC input
Business Shops
Isolated Guest WiFi hotspot
QoS smart traffic control
4G LTE Router Hardware Overview
Engineered for demanding industrial environments and applications. Hardened components are rated for extreme temperatures, shocks, and vibration.
Modular hardware design allows seamless integration into your environment, such as upgrading external antennas and swapping DC & PoE power sources.
Package Contents - What Will You Get
Package Contents
1 x 4G Router CAT6 Modem
2 x 4G paddle antenna
2 x WiFi whip antenna
1 x 1-meter LAN cable
1 x AC-DC Power adapter
Note: Exclude PoE Injector
Be the first to review “4G SIM Router UK Mobile Modem LTE CAT6” Cancel reply
You must be logged in to post a review.
EZR23T - Online Manual
EZR23T.Router.Works
Cat6 LTE-A Mobile Modem - E6 U6 & O6
LTE Category: | CAT.6 (3GPP E-UTRA Release 11) |
4G FDD Bands: | B1/B3/B5/B7/B8/B20/B28/B32Rx Download max 300Mbps / Upload max 50Mbps |
4G TDD Bands: | B38/B40/B41 Download max 260Mbps / Upload max 28Mbps |
2xCA Carrier Aggregation: |
B1+B1/B5/B8/B20/B28 B3+B3/B5/B7/B8/B20/B28 B7+B5/B7/B8/B20/B28 B20+B32Rx | B38+B38 B40+B40 | B41+B41 |
3G Bands: | B1/B/3B5/B8 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps WCDMA: DL 384Kbps / UL 384Kbps |
Bandwidth: | 1.4/3/5/10/15/20/40(2xCA)MHz |
Support Antenna: | DL MIMO, supports Rx-diversity |
Temperature: | Working: -40°C ~ +80°C |
Working Area: | EMEA: Europe, the Middle East and Africa APAC: Asia-Pacific (Excluding Japan and CMCC) and Brazil |
Certification: | CE / RCM / GCF / Deutsche |
EMEA & APAC standard Cat6 mobile modem
It supports mobile networks in the United Kingdom, European countries, Australia, New Zealand, Africa, India, Brazil, South East Asia, and the Middle East countries.
EZEN3X-V3 - Motherboard
CPU: | Qualcomm Atheros QC9531 |
Frequency: | 650MHz |
Memory: | DDR2 RAM 128MB |
Flash: | SPI FLASH 16MB |
SIM card slot: | Double Nano-SIM Cards (12.3×8.8 mm) |
WAN/LAN port: | 10/100 Mbps |
Indicator: | System / Wi-Fi / SIM1 / SIM2 |
Temperature: | Working: -40 to +80 °C Storage: -50 to +90 °C |
Humidity: | 10% ~ 95% RH |
Measurement: | Router 171x113x25 mm |
Package: | 300x197x60 mm |
Wi-Fi Hotspot
Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
Transmission rate: | 300Mbps |
Frequency: | 2.4GHz - 2412 ~ 2484 MHz |
Channel: | 1 ~ 13 |
Bandwidth: | 20/40 MHz or Auto |
Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
Concurrent user: | 57 users |
4G & WiFi Antennas
2 x 4G LTE antenna: | Frequency: 700~960 / 1710~2170 / 2300~2700MHz Peak Gain: 3~5dBi / V.S.W.R.: ≤ 3.0 Size: 209 x 42 mm / Material: ABS |
2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 1.92 Size: Ø13 x 201 mm / Material: TPEE |
Connector: | SMA Male (Not RP) |
Polarization: | Vertical |
Impedance: | 50 Ω |
Max Input power: | 10 Watt |
Temperature: | Working: -0° to 50° Celsius |
Power Supply Options
DC Socket: | Accepts a wide range of 9~48V DC power input AC/DC power adapter included, as below |
PoE WAN & PoE LAN Ports: |
48~52V PoE from 802.3af/at compliant power sources PoE injector is not included |
DC Power Adapter
Input: | AC 110 ~ 240 Volt 50/60 Hz |
Output: | DC 12 Volt 2.0 Amps |
Measurement: | 75.7 x 47.2 x 31.3 mm / 140 gram |
AC Plug: | EU/GB/US/AU Standard AC plugs Ship depends on the destination |
DC Jack: | Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
DC Wire: | Length 1200mm |
Protection: | Short circuit, overload, and over-voltage |
EV3X Open Source Router Firmware
A brief overview of the features and functions in the 4G router firmware, based on the version EV3143.
Mobile Protocol: | Mobile Data, QMI, and PPP |
Command Sets: | MMCLI, QMI, and AT commands |
Mobile Status: | SIM card, Connection status, mobile operator Signal strength (RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
Band Management: | Network lock between 2G 3G and 4G 3G and LTE band lock on web interface |
APN: | Auto APN included Custom APN parameters available |
Mobile Roaming: | On/off as you set |
SIM Switching: | Primary SIM1 by default Choose SIM card or set to auto switch SIM cards |
Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
LAN/WAN Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
Traffic Control: | QoS, SQM, and Multi-WAN load balancing |
Firewall: | New port, port forwarding, and custom rules |
Diagnostics: | Ping, Traceroute, Nslookup |
VPN Tunnel: | OpenVPN client and WireGuard |
Remote Control: | Free traversal cloud * TR069 available on demand |
Please feel free to contact us if you need any further information about the product.
