WiFi Panel Antenna Directional Dual-band MIMO
US$72
The WiFi panel antenna is engineered to boost outdoor WiFi coverage for 2.4GHz and 5.8GHz networks with 2×2 MIMO technology. Its directional panel feeds ensure stable connectivity in challenging environments like weak-signal areas or locations with high interference.
- Directional panel antenna with wide beamwidth
- High gain up to 11–13 dBi with low VSWR ≤ 1.8
- 2×2 MIMO vertical and horizontal polarized feeds
- Dual-band WiFi frequencies 2.4GHz and 5.8GHz
Tired of Patchy WiFi Coverage?
The WiFi panel antenna is an effective solution for improving WiFi coverage in outdoor areas. Integrated dual-band 2.4GHz and 5.8GHz wireless connectivity and 2×2 MIMO technology, its directional panel design delivers focused coverage for extended long-range WiFi coverage.

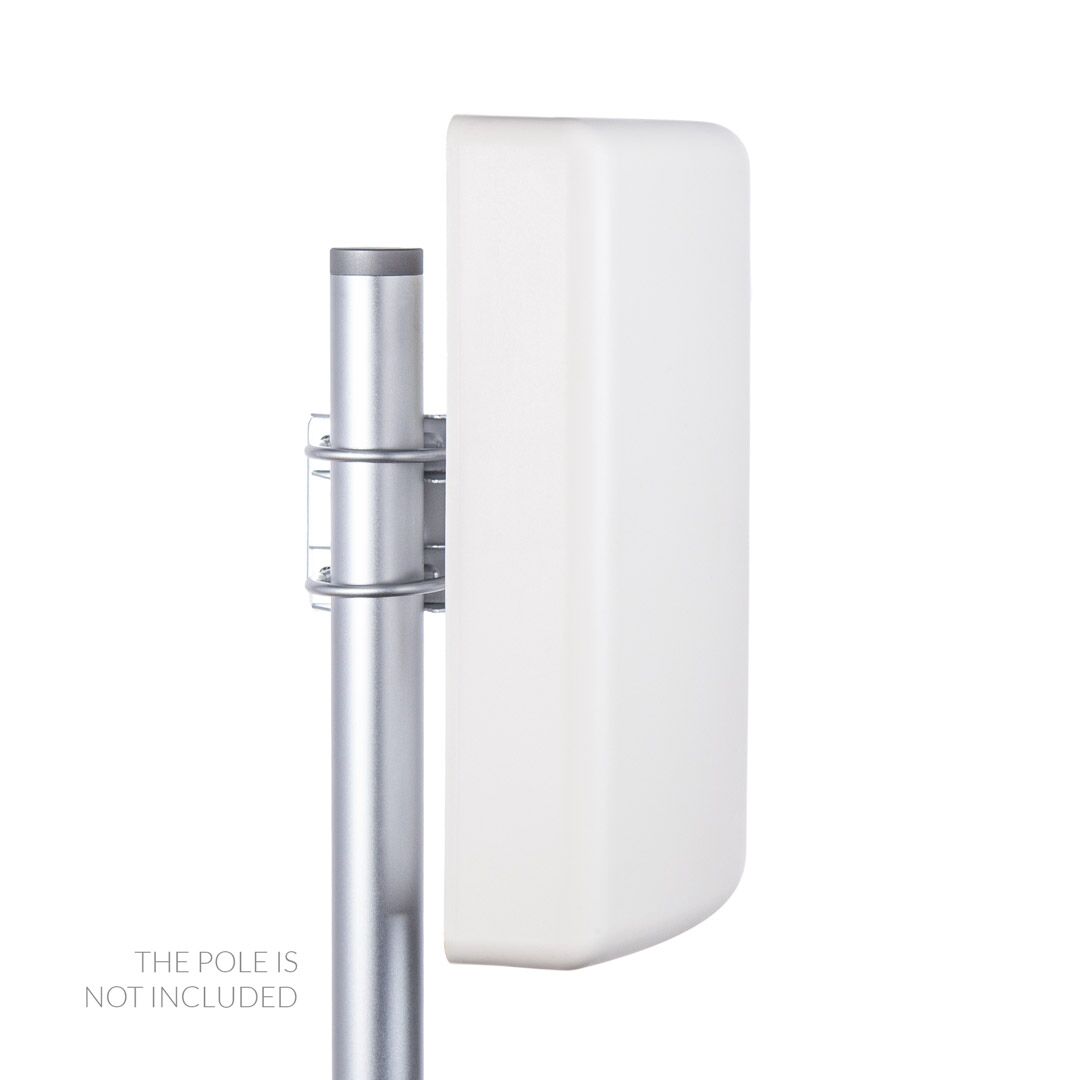

Directional WiFi Panel Antenna
The WiFi panel antenna has two feeds and a flat aluminum plate reflector beneath the plastic dome. This panel reflector shapes the antenna to transmit and receive wireless signals primarily from one direction. It offers 11–13 dBi high gain and higher efficiency to boot your WiFi performance. It’s ideal for extending coverage in hard-to-reach places like basements, gardens, sheds, garages, or remote outdoor locations.
Unlike yagi and parabolic antennas, the panel antenna offers a wide beamwidth and low directivity, making it ideal for covering larger areas. It is easy to install and requires minimal calibration and maintenance. This feature makes it suitable for extending WiFi coverage to outdoor areas such as gardens and guest houses and ensuring stable internet in areas where standard routers struggle to reach.

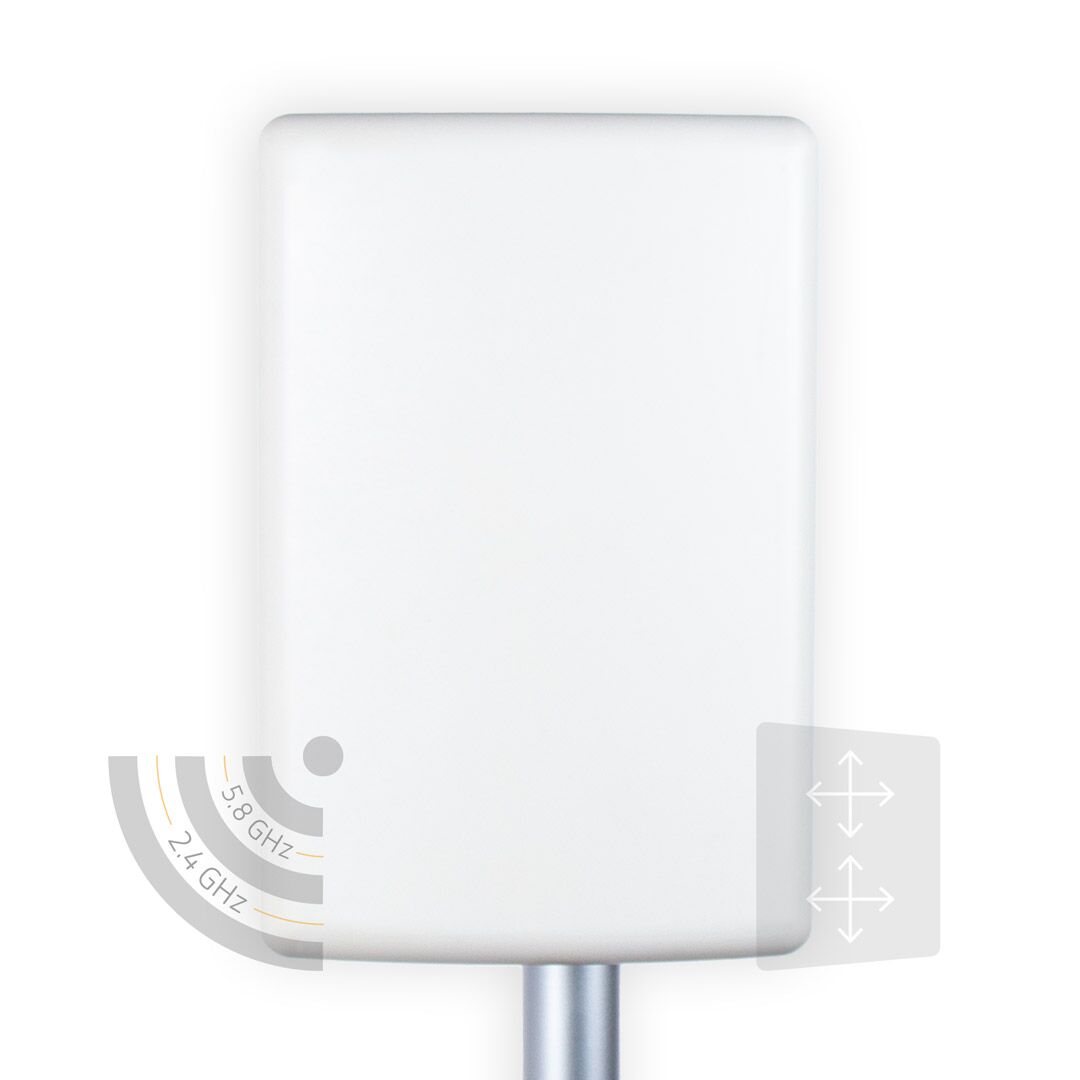

MIMO WiFi Antenna 2.4GHz & 5.8GHz
2×2 MIMO WiFi Antenna
With built-in horizontal and vertical polarized antenna feeds, the WiFi panel antenna utilizes 2×2 MIMO technology to support two antenna ports and minimize signal disruptions, ensuring smooth connectivity even in crowded network environments.

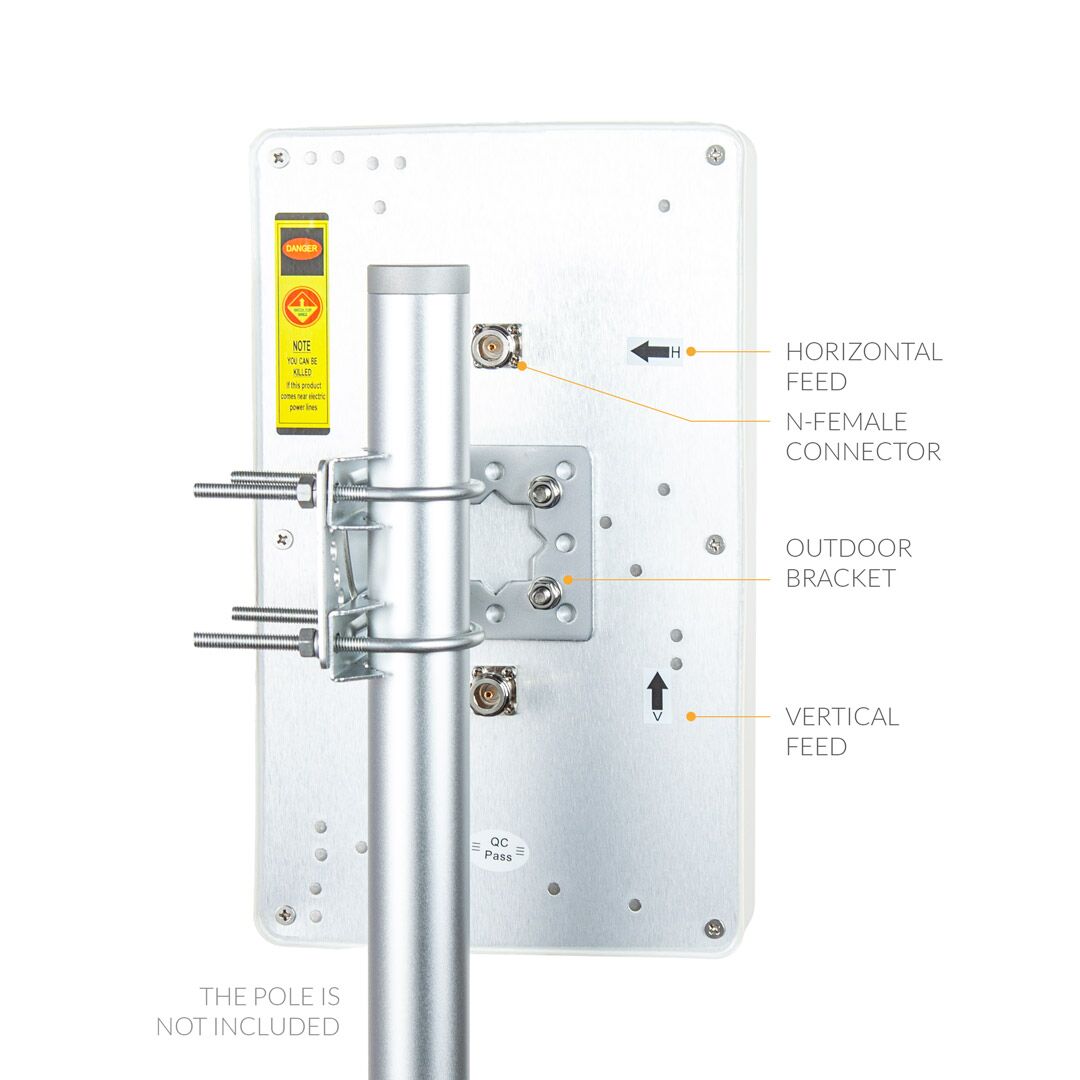

Equipped with two N-female connectors on the back, allowing for flexible connections with various outdoor routers and WiFi extenders using coaxial cables. An adjustable outdoor mounting kit is included for easy installation on poles, enabling you to start improving your WiFi in just a few minutes.
Dual-band WiFi Antenna
Each panel antenna feed simultaneously transceives 2.4GHz and 5.8GHz WiFi signals in the specific direction the panel antenna points to, making it compatible with various outdoor routers, WiFi CPEs, and access points for streaming, gaming, and business needs, even in larger spaces or remote locations.
The 2.4GHz band is more effective at penetrating walls and suitable for covering larger areas and overcoming physical obstacles. The 5.8 GHz band offers faster data transfer speeds and experiences less interference.
Specifications of WiFi Panel Antenna
Electrical Specification
| Specification | 2.4 GHz | 5.8 GHz |
| Frequency Range | 2400–2500 MHz | 5150–5850 MHz |
| Bandwidth | 100 MHz | 700 MHz |
| Gain | 11 dBi | 13 dBi |
| Beamwidth | H 65° | E 30 | H 55° | E 25° |
| F/B Ratio | ≥ 25 dB | ≥ 25 dB |
| VSWR | ≤ 1.8 | ≤ 1.8 |
| Polarization | V+H | ±45 | V+H | ±45 |
| Input Power | Max 50 Watt | Max 50 Watt |
| Nominal Impedance | 50 Ω | 50 Ω |
Mechanical Specification
| Connector | Default N-female | |
| Antenna Size | W30 x H18. 3 x D7 CM | |
| Weight | 1,100 Gram | |
| Rated Wind Velocity | 60 M/S | |
| Target Pole | Ø 3–5 CM | |
| Working Temperature | -40 – +80 °C | |
| Surge Protection | DC Ground | |
