| CPU Chipset: | MTK7621AT MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M2.0 and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Double Nano-SIM Cards (12.3x8.8mm) |
| Indicator: | SIM1 / SIM2 / Power / System / Wi-Fi / Mobile |
| Consumption: | ≤ 25 Watt |
| Temperature: | Working: -30 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x PoE & LAN and 1x WAN 2x Nano-SIM card slots 1x Reset button |
EZEN-4X Embedded 4G/5G Board
EZEN-4X is an embedded compact Wi-Fi 5 router motherboard designed for home and office mobile internet solutions. It features an M.2 socket supporting CAT6–CAT12 and 5G-NR mobile modems, along with dual SIM card slots for reliable connectivity. This versatile router board is a complete gateway solution with seamless mobile internet capabilities. The features and specifications below are based on the latest EZEN4X-V3 version PCB board.
Quad-core CPU
Powered by quad-core CPU, MTK7621.
256M DDR3 and 32MB Flash Memory.
1Gbps rated speed on LAN/WAN and PoE ports.
MIMO WI-FI
MU-MIMO 2.4GHz & 5.8GHz WiFi radios.
High power 24~26dBm covers 100~200 yards.
Support EasyMesh standard Wi-Fi network.

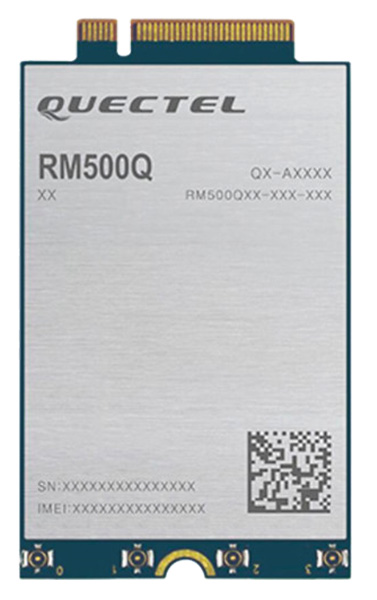

4G/5G Modem
Fast speed PCIe M.2 socket & 1–2 SIM slots.
Supports single 4G or 5G mobile modem.
Advanced mobile protocols and watchdog.
EZEN4X – Outdoor 4G/5G Router
The weatherproof outdoor 4G/5G router offers global connectivity across 4G and 5G mobile networks. It’s engineered to provide fast-speed mobile internet for homes, offices, and even rural areas through Wi-Fi hotspots and wired Ethernet connections.
The outdoor 4G/5G router provides reliable mobile internet access in challenging environments. It is a dependable MIMO Wi-Fi 5 gateway for remote locations and outdoor installations. Built to withstand extreme weather conditions, it is ideal for smart city infrastructure, transportation networks, construction sites, and other rugged outdoor settings requiring robust internet connectivity.

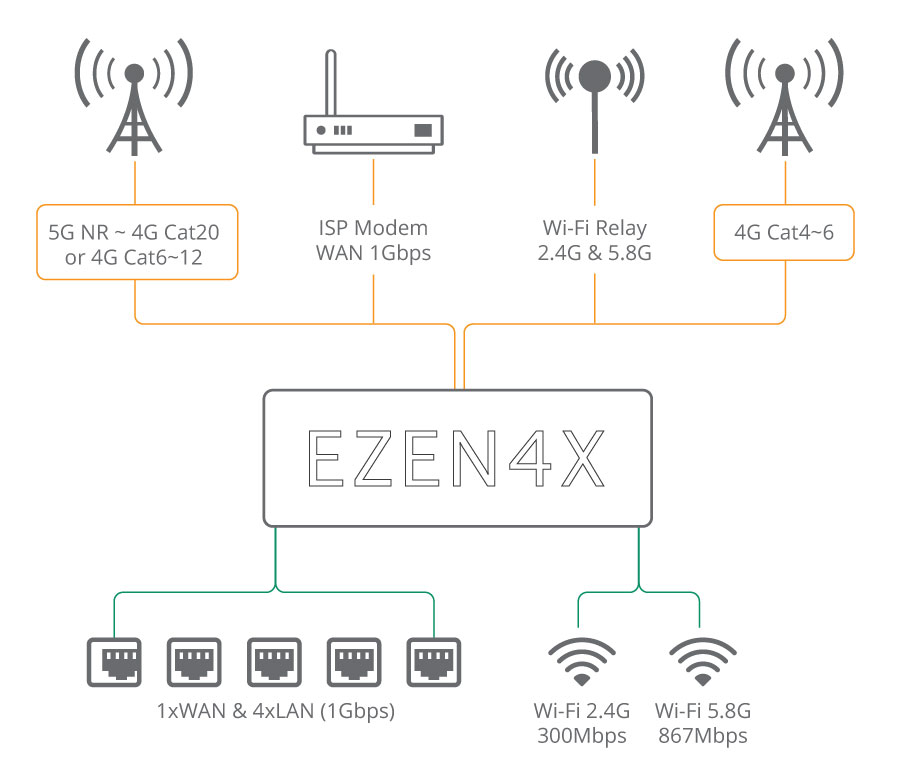

Working Principle of Outdoor Router
EZEN4X Version 3
Motherboard Top Down View
EZEN4X V3 Outdoor Board
1200M Dual-band WiFi
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27 ± 2.0 dBm | 24 ± 2.0 dBm |
| Sensitivity: | ≤ -64 ~ -91 dBm | ≤ -55 ~ -82 dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac wave2 | |
| Modulation: | OFDM / BSDK / QPSK / DQPSK / DBPSK | |
| MIMO WiFi: | 2T2R Wave 2.0 MU-MIMO | |
PoE Injector w/ Ethernet
| Input: |
AC 100~240Volt 50/60Hz |
| Output: | 52Volt 0.5Amps |
| LAN Cable | CAT6 outdoor 10-meter cable included * Support max 50-meter length. |
| PoE Wiring: | TIA/EIA568B Standard DC+ 4,5 | DC- 7,8 | 1Gbps Ethernet on all wires |
| AC Plug: | EU / GB / US / AU standard available * Ship depends on the destination. |
Alternative DC Power
| DC Socket: | Takes wide-range 9~52 Volt DC power |
| DC Jack: | Supports Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Supports max length 12-meter |
Note:
1. Do not input overloaded power, especially the electric current!
2. The typical DC power sources are 12V 1.5~2.0A or 48~52V 0.5A.
EZEN4XN – Indoor 4G/5G Router
The indoor 4G/5G SIM card router delivers fast mobile internet through an LTE or 5G-NR modem. It has various versions to adapt to global mobile carriers. It features nano SIM card slots and an advanced 4×4 MIMO antenna array for optimal performance.
You can use it as a primary internet gateway or backup mobile internet solution. Its 3G/4G fallback capability and a landline WAN port ensure uninterrupted connectivity.
The indoor router is ideal for home offices, small businesses, remote working setups, temporary construction sites, pop-up retail locations, and event venues where landline internet is unavailable.
EZEN4XN Indoor
Back View of the Router Motherboard
EZEN4XN - Indoor Router Board
| CPU Chipset: | MTK7621 MIPS1004Kec |
| Clock Speed: | 880MHz |
| Memory: | DDR3 256Mbyte / SPI FLASH 16MB |
| Modem Socket: | 1x M.22 (Active) and 1x Mini PCI Express v2.0 |
| SIM Card Slot: | Single activated SIM slot - Bond to M.2 modem |
| Indicator: | System / Power / WiFi / Mobile (SIM1) |
| Temperature: | Working: -20 to +70°C / Storage: -40 to +85°C |
| Humidity: | 0%~100% RH |
| Physical Interface: | 1x WAN & 4xLAN / 8x Antenna sockets Nano-SIM card slot / 1x Reset button |
DC Power Adapter
| Input: |
AC 100~240Volt 50/60Hz 0.5Amps |
| Output: | DC 12Volt 2.0Amps |
| Measurement: | 75.7*47.2*31.3mm / 140g |
| AC Plug: | EU/GB/US/AU standard available |
| DC Jack: | Outer Ø5.5mm / Inner Ø2.1mm / Length 10mm |
| DC Wire: | Length 1200mm |
| Protection: | Short circuit, overload, and over-voltage |
Wi-Fi Hotspots
| Frequency: | 2.4GHz: 2412~2472 MHz | 5.8GHz: 5180~5825MHz |
| Wi-Fi Channel: | 1~13 | 149, 153, 157, 161, 165 |
| Speed Rate: | 300Mbps | 867Mbps |
| Output Power: | 27dBm | 26dBm |
| Wi-Fi Standard: | IEEE 802.11 a/b/p/g/n/ac IEEE 802.3 and IEEE 802.3u |
|
| MIMO Wi-Fi: | 2T2R Wave 2.0 MU-MIMO | |
| Mesh Wi-Fi: | EasyMesh standard | |
EZEN4X Outdoor 4G/5G Routers
| SKU: EZR34T-LTE | |
| 4G LTE-A modem CAT6 CAT12 |  |
| Dual Nano SIM card slots |  |
| Boosted WiFi covers 100-300 meters |  |
| 52V PoE with 1Gbps Ethernet |  |
| Patented IP67 waterproof enclosure |  |
New
| SKU: EZR34T-5G | |
| 5G-NR modem max 2.5Gbps | |
| Dual Nano SIM card slots | |
| Boosted WiFi covers 100-300 meters | |
| 52V PoE with 1Gbps Ethernet | |
| Patented IP67 waterproof enclosure | |
