CA$422

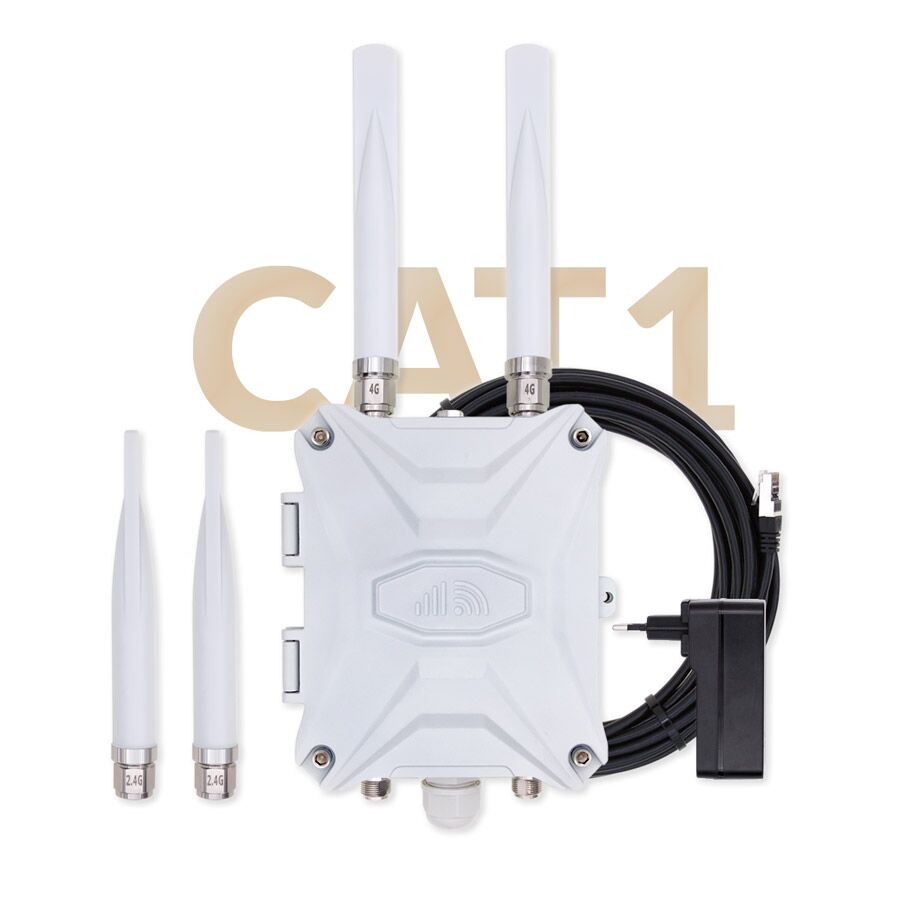

Outdoor CAT1 LTE router has a built-in Category 1 LTE modem that provides a max 10Mbps download speed for low and medium-throughput such as sensors and terminals.
The robust 4G IoT router gateway has a waterproof anti-corrosion enclosure capable of use in extreme conditions. The standalone 1-watt WiFi hotspot covers 150~300 yards in an open area and supports 48Volt PoE power or 12Volt DC power.
Max 10Mbps download speed, the CAT1 LTE router is a low-cost gateway with low and medium-throughput for IoT applications.
Use an outdoor CAT1 router to receive stronger 4G mobile signals and provide extensive WiFi coverage in the outdoor area.
As 2G and 3G are coming to an end, the 4G router provides a seamless solution for IoT applications to switch to widely deployed 4G LTE mobile networks. Defined by 3GPP Release 8, the LTE CAT1 offers 10Mbps download speed and 5Mbps upload speed for the devices and applications that request low throughput.
The LTE CAT1 router supports global coverage, lower latency, data streaming, half-duplexing, and mobile tower handoff. Due to lower data usage and power consumption than higher LTE categories routers, the LTE CAT1 router is an excellent choice for IoT sensors, POS terminals, vending machines, ATMs, asset trackers, smart meters, etc.
Come with an antirust and waterproof aluminum enclosure, and the outdoor CAT1 LTE router is capable of using in any extreme environment.
Harsh Environment
Provides rugged internet for IoT sensors, industrial applications, water treatment, etc.
Outdoor Events
Use a SIM card to set up a temporary internet for outdoor events, construction sites, etc.
Remote & Rural Areas
Receive stronger outdoor 4G signals. Extreme outdoor WiFi coverage.
Diecast from anti-corrosion ADC12 aluminum by 100-ton pressure. The outdoor 4G modem router has the unique & modular designed enclosure with a weather-proof coating.

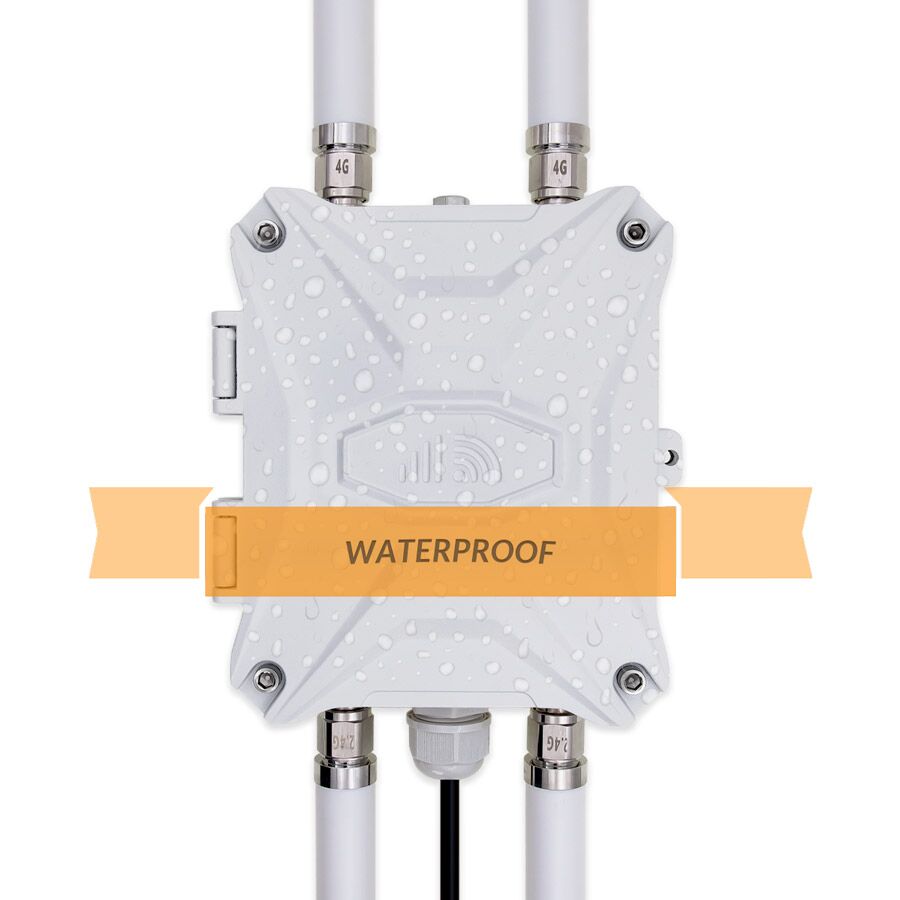

The durable enclosure provides waterproof protection in demanding environments.
A set of o-rings seals and gaskets protects the router against water and dust.
The outdoor enclosure has effective heatsink fins with rain diverters. The 4G modem router works in the temperature range of -40° ~ +80° celsius.
Integrate lighting protection of common 6KV & differential 1.5KV.
The breather valve prevents rupturing or imploding.
Flexible Mounting System
Easily install the router on a pole or wall surface with the robust bracket system.
It offers flexible solutions to install in vertical or horizontal directions.
ii. Standalone MIMO Wi-Fi hotspot on 2.4GHz. Connect up to 57 Wi-Fi-enabled devices to the internet, such as cameras, doorbells, etc. It also supports the Wi-Fi relay.
iii. PoE Power System -- Comply with 802.3af/at PoE standard, the outdoor 4G router uses a LAN cable to transmit both DC power and Ethernet data. It supports a max 50-meter LAN cable. You can also power it up with a 12V DC power adapter.
iv. LAN Ethernet Connection -- Connect the network switch, second router, or computer to the LAN port on the PoE injector to extend the 4G internet to an indoor area.
v. Include wideband LTE antennas and omnidirectional Wi-Fi antennas. These external antennas are upgraded with UV coating and hexagon SS connectors. The robust N-female connectors support upgrades to directional antennas to improve signal reception.
Outdoor router operates as a plug-and-plug Linux router for internet freedom. It's easy to use and with a bundle of advanced tools.
The SIM-card router has integrated modem drivers, mobile protocols, and APN parameters. It also supports mmcli and AT command sets.
The keepalive design brings stable mobile internet connections. Automatically redial modem, reboot router, and switch SIM cards.
Access and control the router with a web browser. It provides full authority to access SSH FTP Telnet, software center, and file system.
It has built QoS, firewall, DNS filter, and multiple-WAN. You can easily control the inbound and outbound traffics.
Supports OpenVPN and WireGuard. You can remotely access it via the Traversal-Cloud. TR069 is available on demand.
The package includes the below contents along with a 15-day money-back warranty and 1-year quality guarantee.
You will also receive our zealous customer services and technical supports.
1 x Outdoor CAT1 LTE Router
4 x Omni Antenna
1 x 10-meter outdoor LAN Cable
1 x 48V PoE Injector
1 x L-Shape Bracket
1 x T-Shape Wrench
1 x Mounting Kit
You must be logged in to post a review.
| SKU Suffix: | E1 | O1 | A1 |
| LTE Category: | Category 1 | Category 1 | Category 1 |
| 4G FDD Bands: | Band 1/3/7/8/20/28A Download max 10Mbps Upload max 5Mbps |
Band 1/2/3/4/5/7/8/28 Download max 10Mbps Upload max 5Mbps |
Band 2/4/12
Download max 10Mbps Upload max 5Mbps |
| 4G TDD Bands: | N/A | Band 40 Download max 8.96Mbps Upload max 3.1Mbps |
N/A |
| 3G Bands: | Band 1/8 DC-HSPA+: DL42 / UL5.76 Mbps WCDMA: DL/UL 0.384 Mbps |
Band 1/2/5/8 DC-HSPA+: DL42 / UL5.76 Mbps WCDMA: DL/UL 0.384 Mbps |
Band 2/4/5 DC-HSDPA: DL Max 42Mbps HSUPA: UL Max 5.76Mbps |
| 2G Bands: | Band 3/8 EDGE: DL296 / UL236.8 Kbps GPRS: DL107 / UL85.6 Kbps |
Band 2/3/5/8 EDGE: DL296 / UL236.8 Kbps GPRS: DL107 / UL85.6 Kbps |
N/A |
| Working Area: | EMEA (Europe, Africa, Middle East) and Thailand *Except for India |
Australia, New Zealand and Latin America |
North America
USA: AT&T / T-Mobile Canada: Rogers / Telus *Except for Verizon |
| Certification: | GCF/CE/RCM RoHS/WHQL |
FCC/IC/Telstra/Anatel NCC/JATE/TELEC/RCM RoHS/WHQL |
FCC/PTCRB/IC AT&T/T-Mobile Rogers/Telus |
| CPU: | Qualcomm Atheros QCA9531 |
| Clock Speed: | 650MHz |
| Memory: | DDR2 RAM 128MB |
| Flash: | SPI FLASH 16MB |
| SIM card slot: | Double Nano-SIM Cards (12.3×8.8 mm) |
| WAN/LAN port: | 10/100 Mbps |
| Indicator: | System / Wi-Fi / SIM1 / SIM2 |
| Surge Protection: | Common-mode 6 kV Differential mode 1.5 kV |
| Temperature: | Working: -40 to +80 °C Storage: -50 to +90 °C |
| Humidity: | 10% ~ 95% RH |
| Measurement: | Router 148x183x55 mm |
| Package: | 303x249x129 mm / 2400 gram |
| Wi-Fi standards: | IEEE 802.11 a/b/g/n IEEE 802.3 and IEEE 802.3u |
| MIMO Wi-Fi: | 2T2R MIMO (multiple-input multiple-output) |
| Transmission rate: | 300Mbps |
| Frequency: | 2.4GHz - 2412 ~ 2484 MHz |
| Channel: | 1 ~ 13 |
| Bandwidth: | 20/40 MHz or Auto |
| Output power: | 802.11b: 27±2dBm 802.11g: 25±2dBm 802.11n: 23±2dBm |
| Wi-Fi mode: | 11b / 11g / 11n only 11b/g mixed or 11b/g/n mixed |
| Concurrent user: | 57 users |
| 2 x 4G LTE antenna: | Frequency: 698~960 / 1710~2170 / 2300~2700MHz Peak Gain: 3~4dBi / V.S.W.R.: ≤ 2.0 |
| 2 x Wi-Fi antenna: | Frequency: 2400~2500MHz Gain: 4~5dBi / V.S.W.R.: ≤ 2.0 |
| Measurement: | Ø23 x 181 mm |
| Material: | ABS |
| Connector: | N Male |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| Max Input power: | 10 Watt |
| Input: | AC 110 ~ 240 Volt 50/60 Hz |
| Output: | 48 Volt 0.5 Amps |
| PoE Wiring: | Ethernet 1, 2, 3, 6 DC+ 4, 5 and DC- 7, 8 |
| AC Plug: | EU/GB/US/AU standard AC plugs Ship depends on the destination |
| LAN Cable: | 10-meter outdoor-grade Ethernet cable included. Supports max 50 meters. |
| DC Socket: | Accepts a wide range of 9~48V DC power input AC/DC power adapter is not included |
| PoE WAN & PoE LAN Ports: |
48~52V PoE from 802.3af/at compliant power sources PoE injector is included, as above |
A brief overview of the features and functions in the 4G router firmware, based on the version EV3143.
| Mobile Protocol: | Mobile Data, QMI, and PPP |
| Command Sets: | MMCLI, QMI, and AT commands |
| Mobile Status: | SIM card, Connection status, mobile operator Signal strength (RSRQ, RSSI, RSRP & SNR) IMEI, IP address, and TX/RX data flow |
| Band Management: | Network lock between 2G 3G and 4G 3G and LTE band lock on web interface |
| APN: | Auto APN included Custom APN parameters available |
| Mobile Roaming: | On/off as you set |
| SIM Switching: | Primary SIM1 by default Choose SIM card or set to auto switch SIM cards |
| Accessibility: | Web GUI interface, SSH terminal, and FTP/SFTP |
| LAN/WAN Protocol: | Static, DHCP, PPPoE, IPv4/6, and WireGuard |
| Wi-Fi Network: | SSID, encryption, MAC filter, guest Wi-Fi, and Wi-Fi relay |
| Traffic Control: | QoS, SQM, and Multi-WAN load balancing |
| Firewall: | New port, port forwarding, and custom rules |
| Diagnostics: | Ping, Traceroute, Nslookup |
| VPN Tunnel: | OpenVPN client and WireGuard |
| Remote Control: | Free traversal cloud * TR069 available on demand |
